Multi-purpose platform
Sommaire de page
Description
MODULAR FORMWORK TRAY
Safe and multi-purpose formwork with a short implementation time on the construction site.
REF : PPO
Caractéristiques techniques
- Modular and expandable platforms adapted to any kind of use: balcony table, formwork panel support, scaffolding support, material receipt, and crossing.
- Ensures a safe working environment prior to installation of the multi-purpose platform. Compatible with all types of 25mm diameter railings.
- Treatment of crawl spaces (variable support from 0.50m to 1.1m).
- A full range of accessories is available: formwork lift, shoring towers and a height adjustable shoring system.
- 3 standard dimensions: length = 3m, 4m and 6m, width = 2m, rental extensions possible, and custom extensions also available.
- Load bearing capacity up to 250 daN/m² and 900 daN/ml. Other loads available, subject to approval by our design office.
Téléchargement Documentation

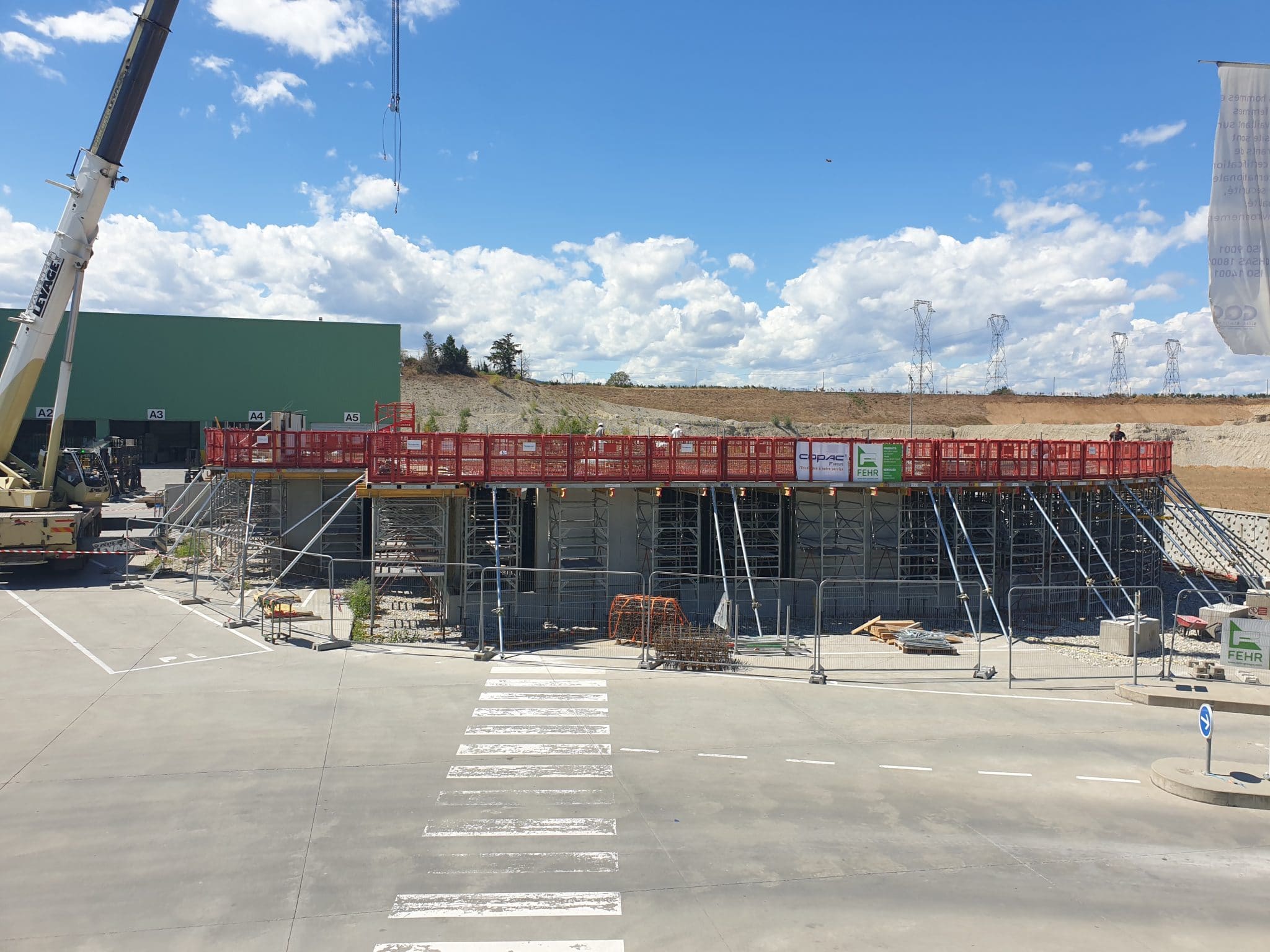

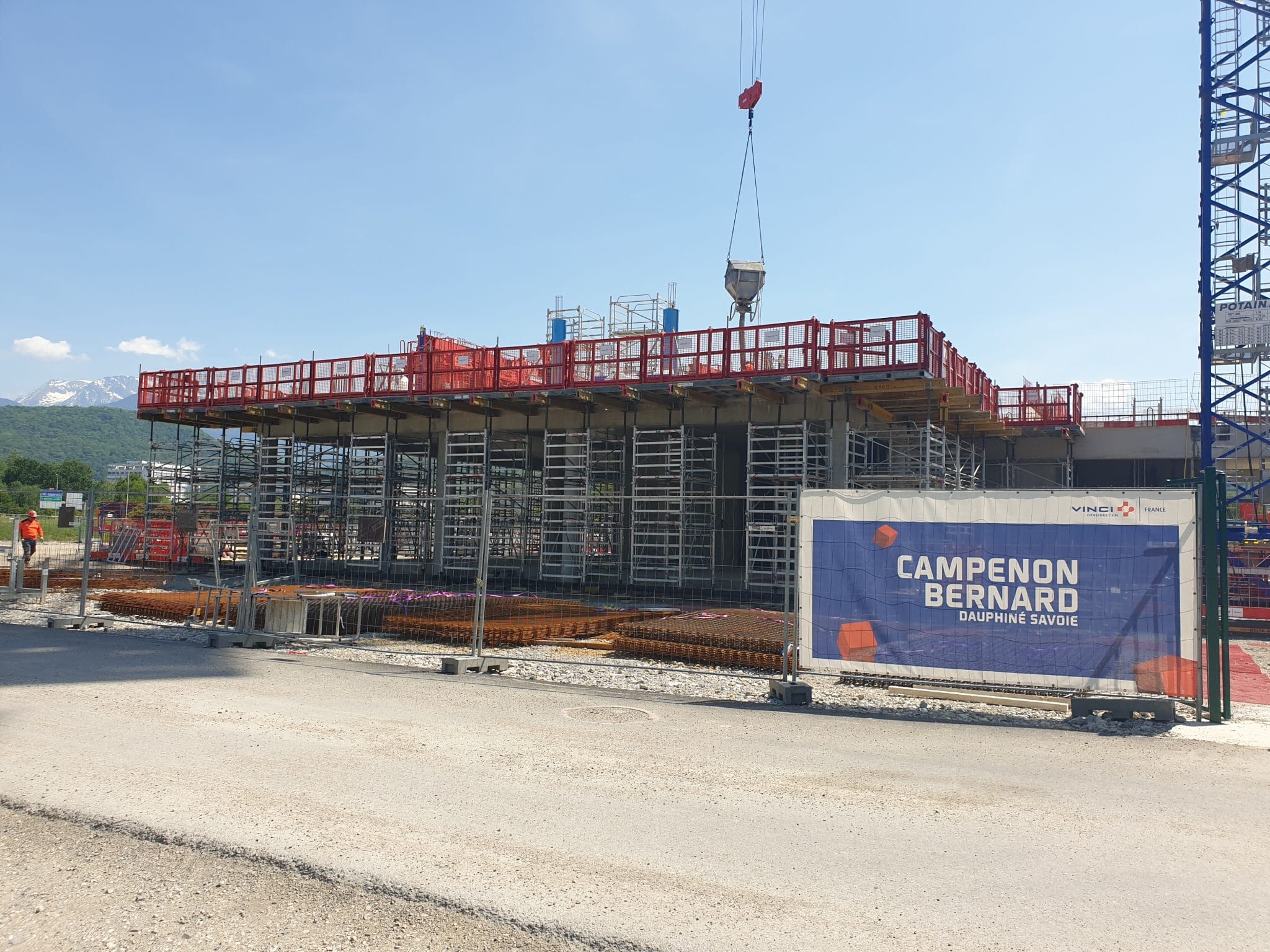

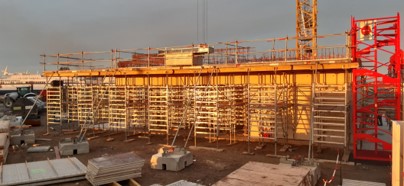

Galerie photos
Plateau polyvalent 3D
FAQ
What is the multi-purpose tray used for ?
Our versatile tray adapts to any type of use: balcony table, formwork support, nacelle circulation, scaffolding support, material acceptance and crossing.
What are the dimensions and weight of the multi-purpose tray ?
Platform of 3, 4 and 6 meters in length with possibility of extension up to 0.75 m. Width = 2m. Weight = 85kg /m².
Should primary and secondary beams be used ?
The multi-purpose tray is only placed on the primary beam
What is the load bearing of the multi-purpose tray ?
Load recovery up to 250 daN/m² and 900 daN/ml
