Copass200 CWP
Sommaire de page
Description
MODERN PLATFORM ACCORDING TO NEW REGULATIONS
A platform to facilitate the fitting of external facade formwork, as well as pedestrian flow and all necessary associated amenities.
REF : COPASS200
Technical Specifications
Safety
- Complying with NF P93-351 (March 2014)
- Drawing of layout plans
- Labelling of platforms
Range
1-6 m CWP range: Adjustable with both standard and custom extensions
Ergonomics
- 2-metre CWP width
- Modular guardrails for easy adjustment
- 30mm class 3 plywood floor (40mm for extensions)
- Monoblock CWP = Easier storage on the construction site and faster delivery
- No component loss
- Easy to roll out and fold up
- Multi-directional support structure
- Max. load bearing capacity within the brackets: 4 T
Download documentation

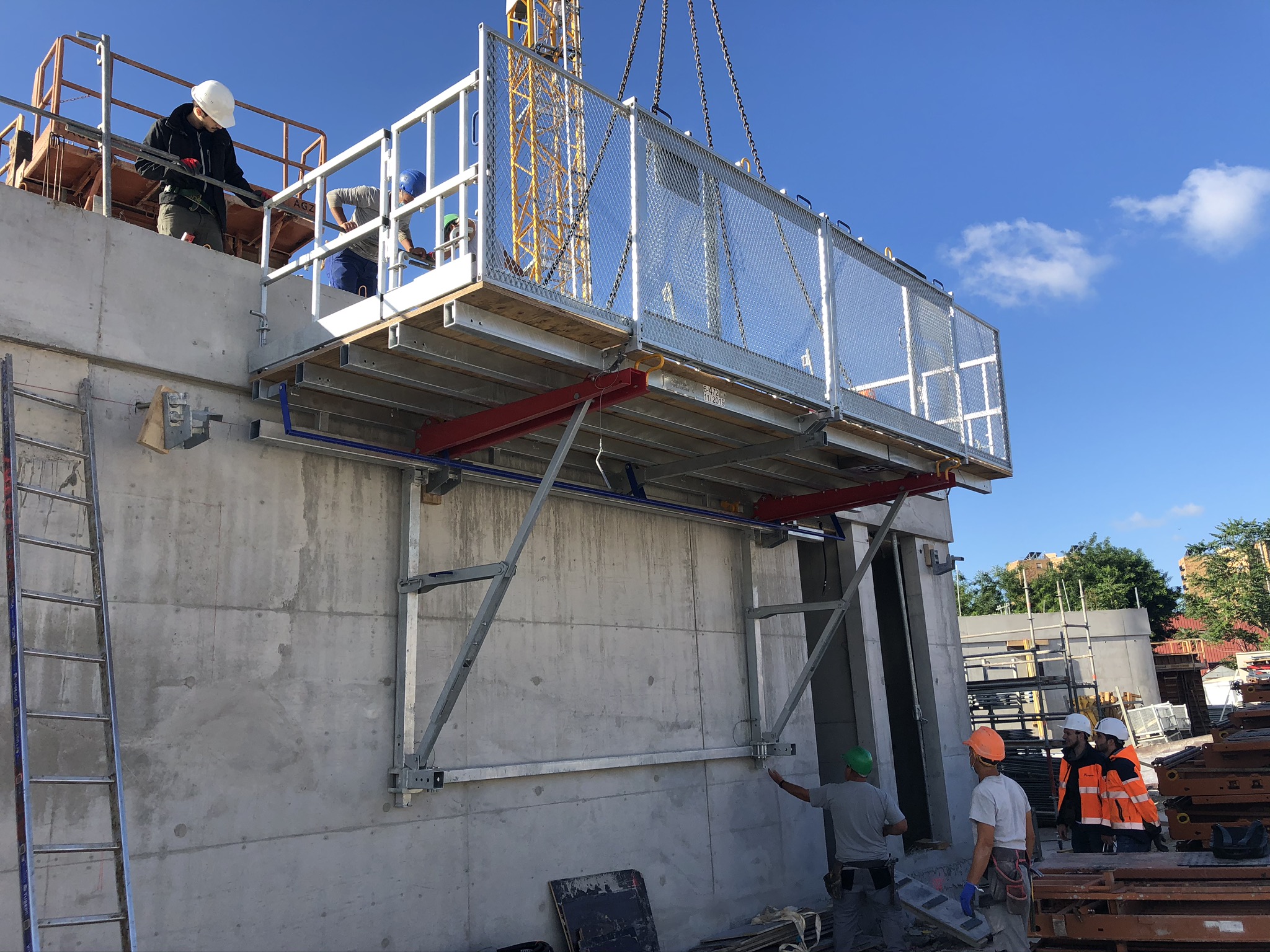

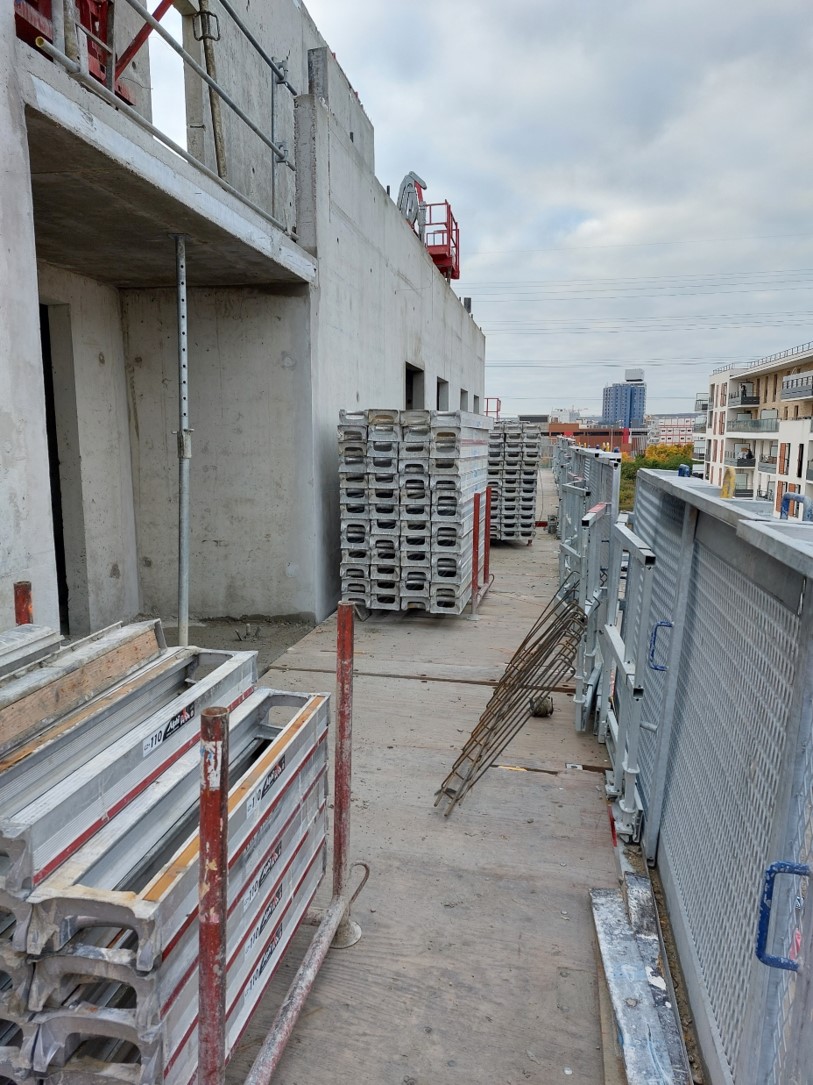

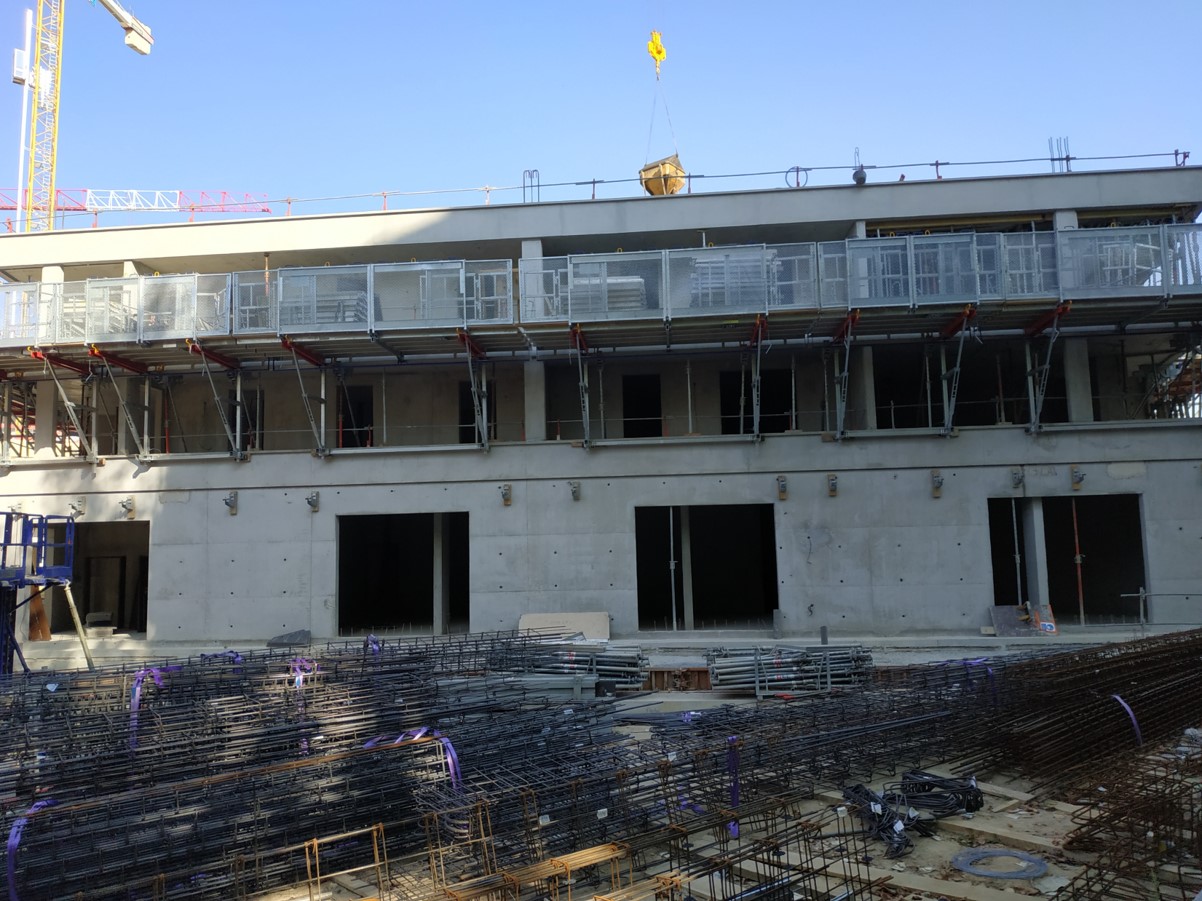

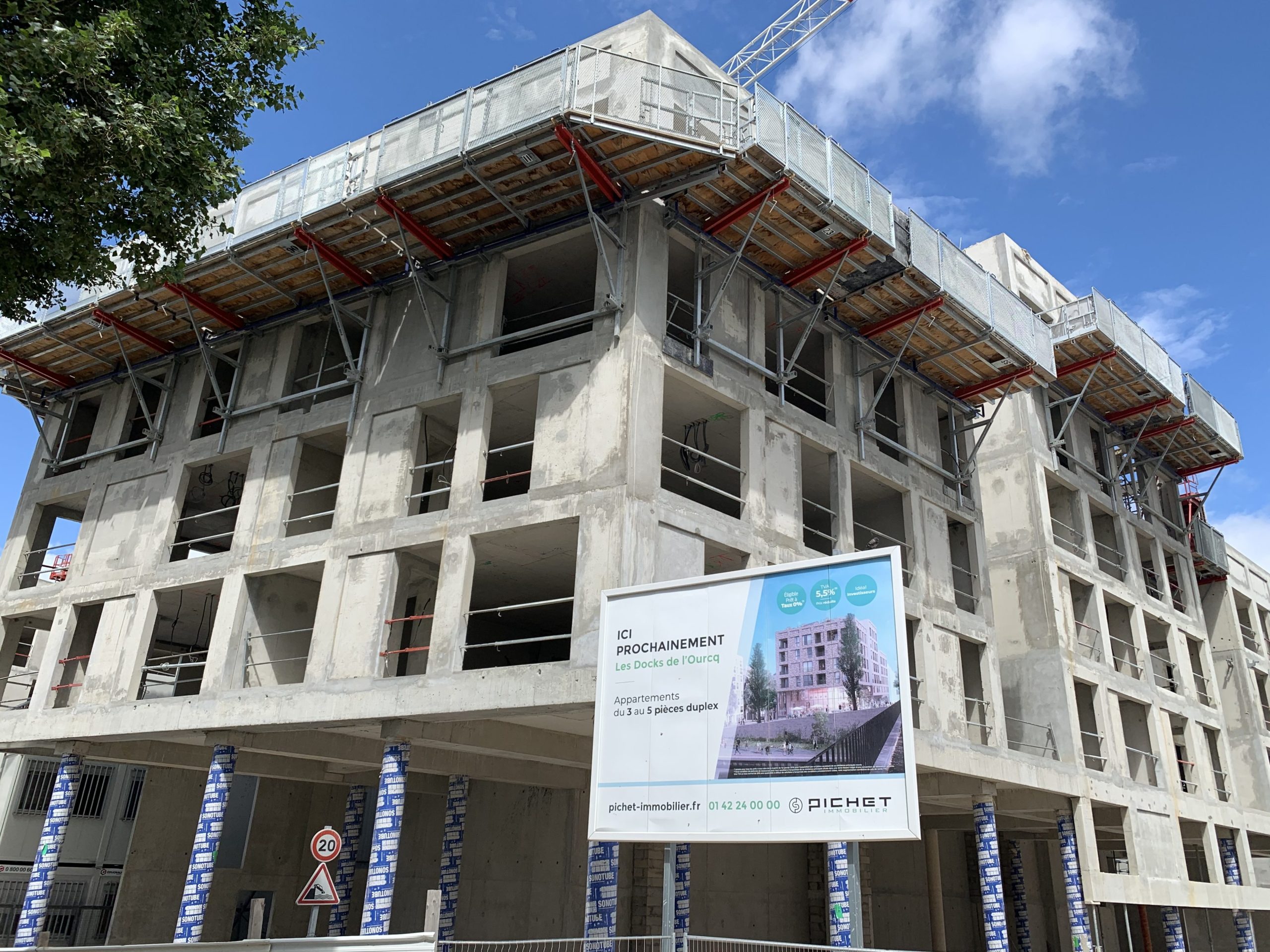

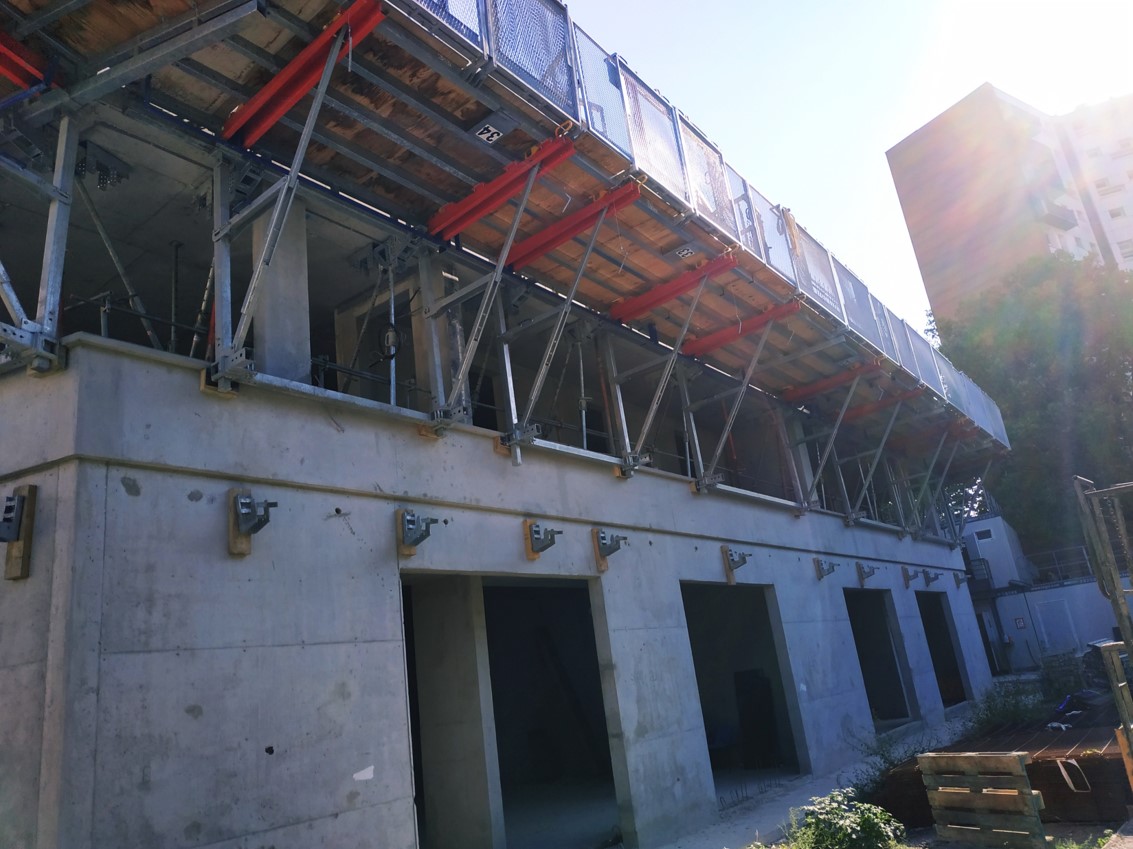

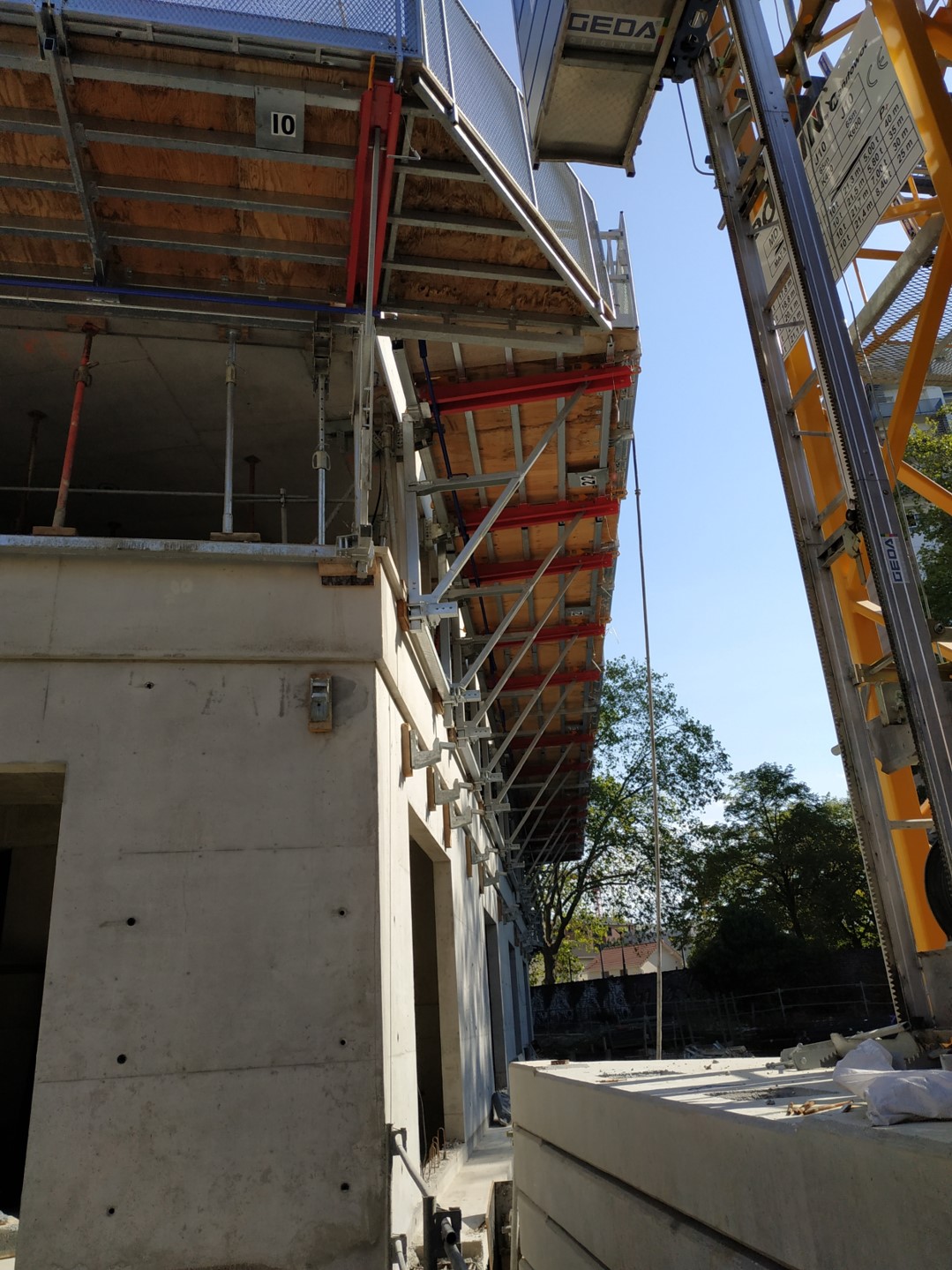

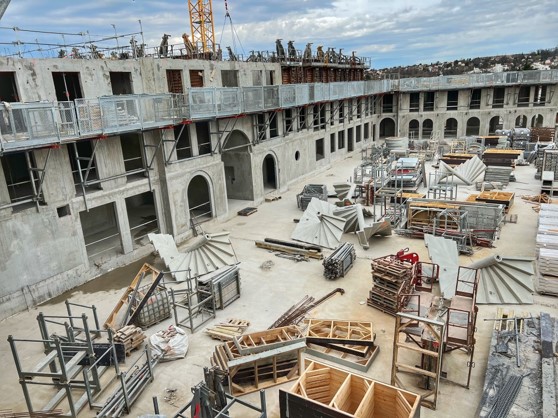

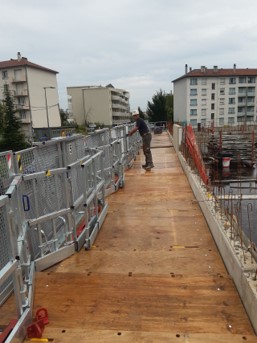

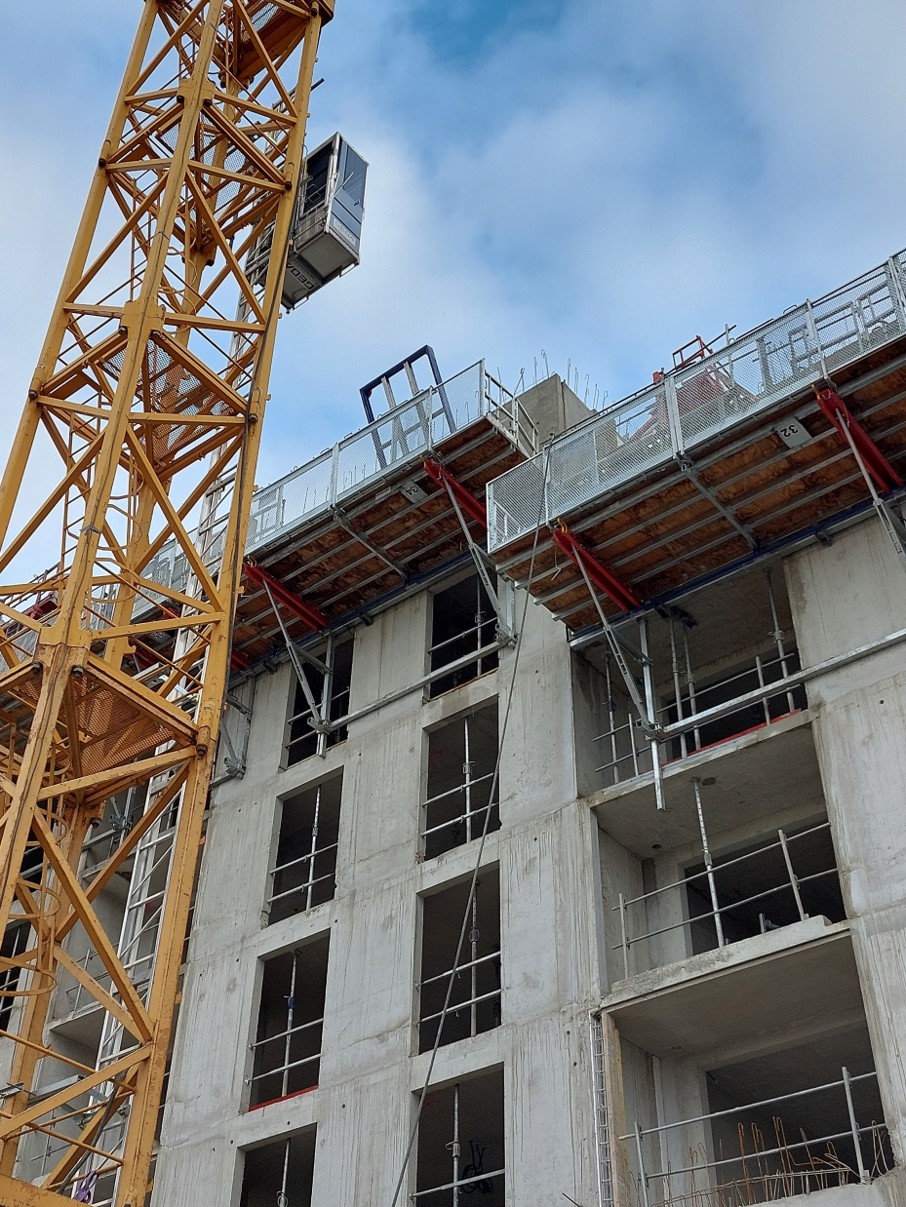

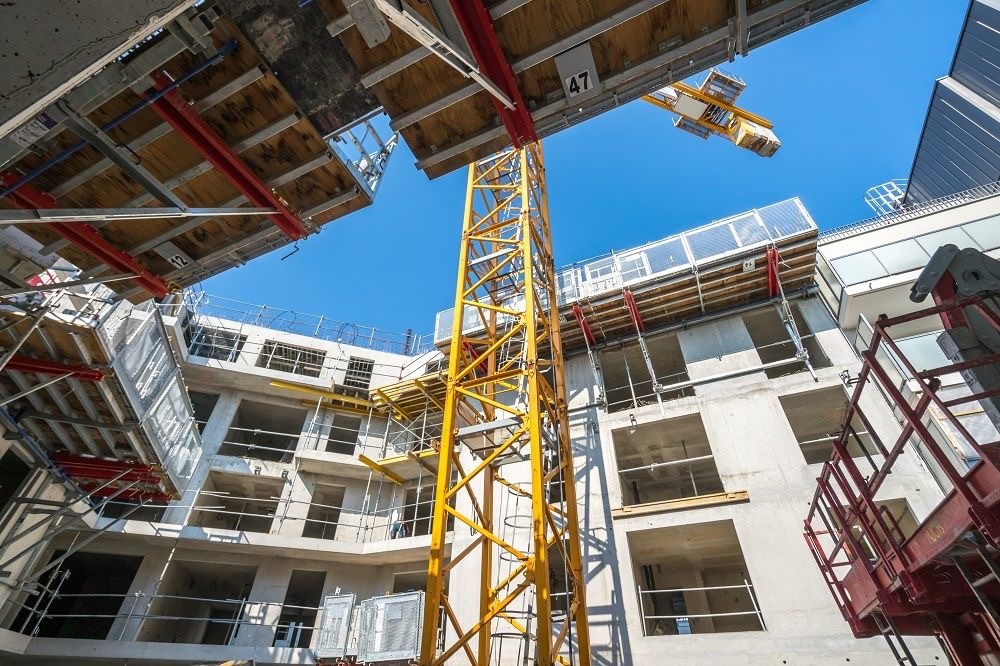

Photos gallery

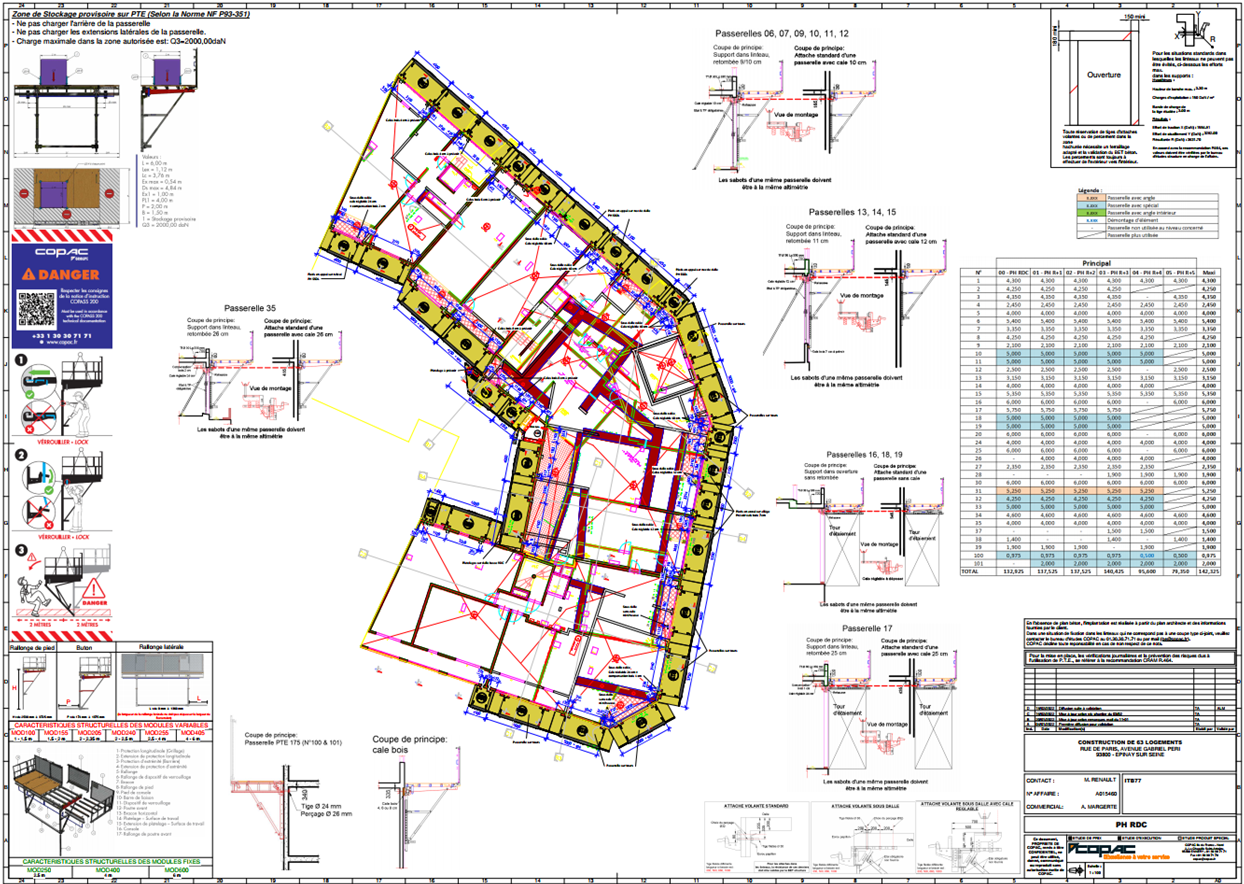

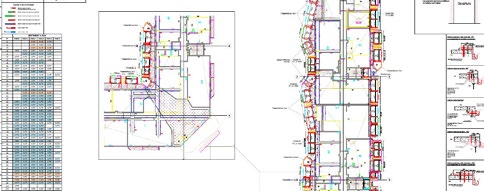

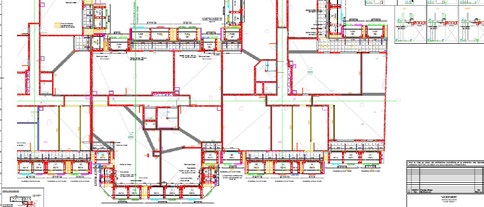

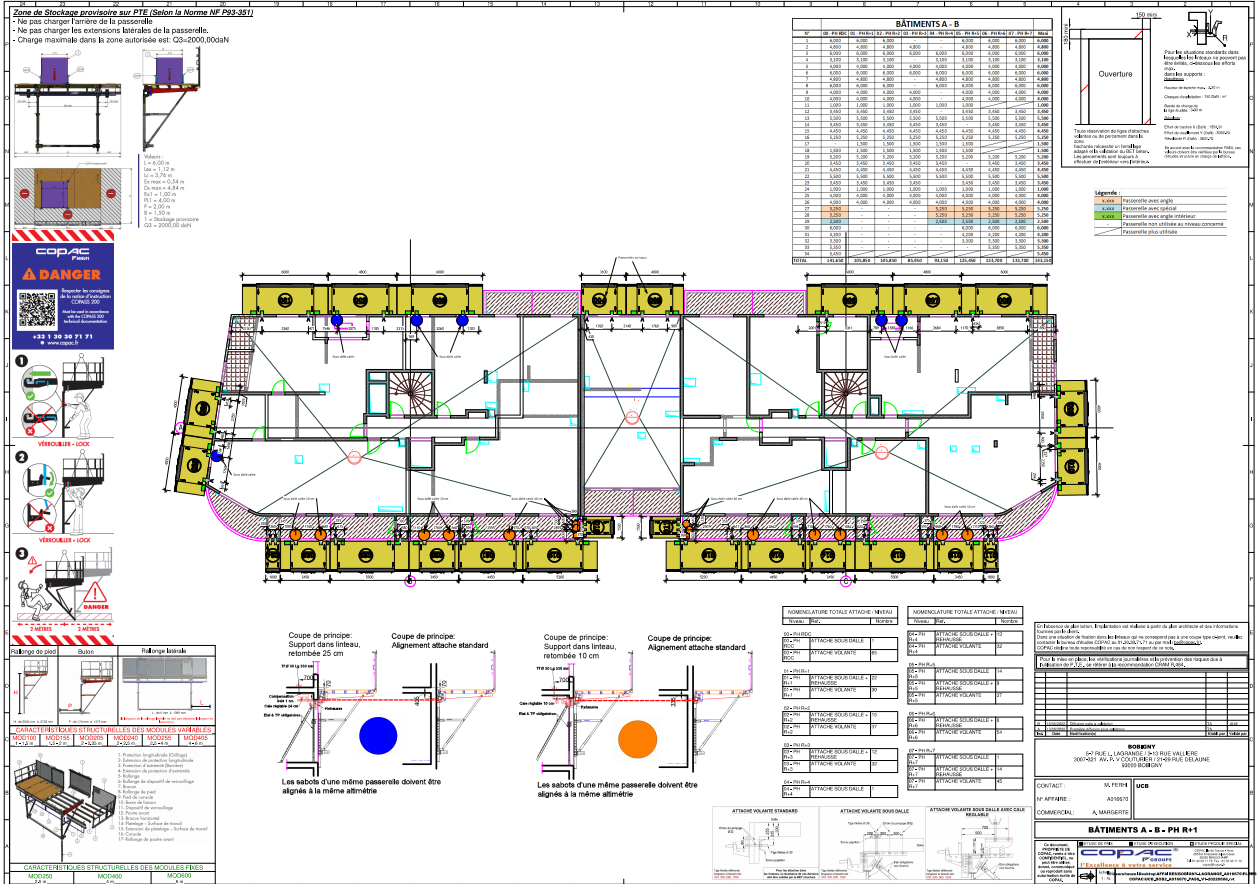

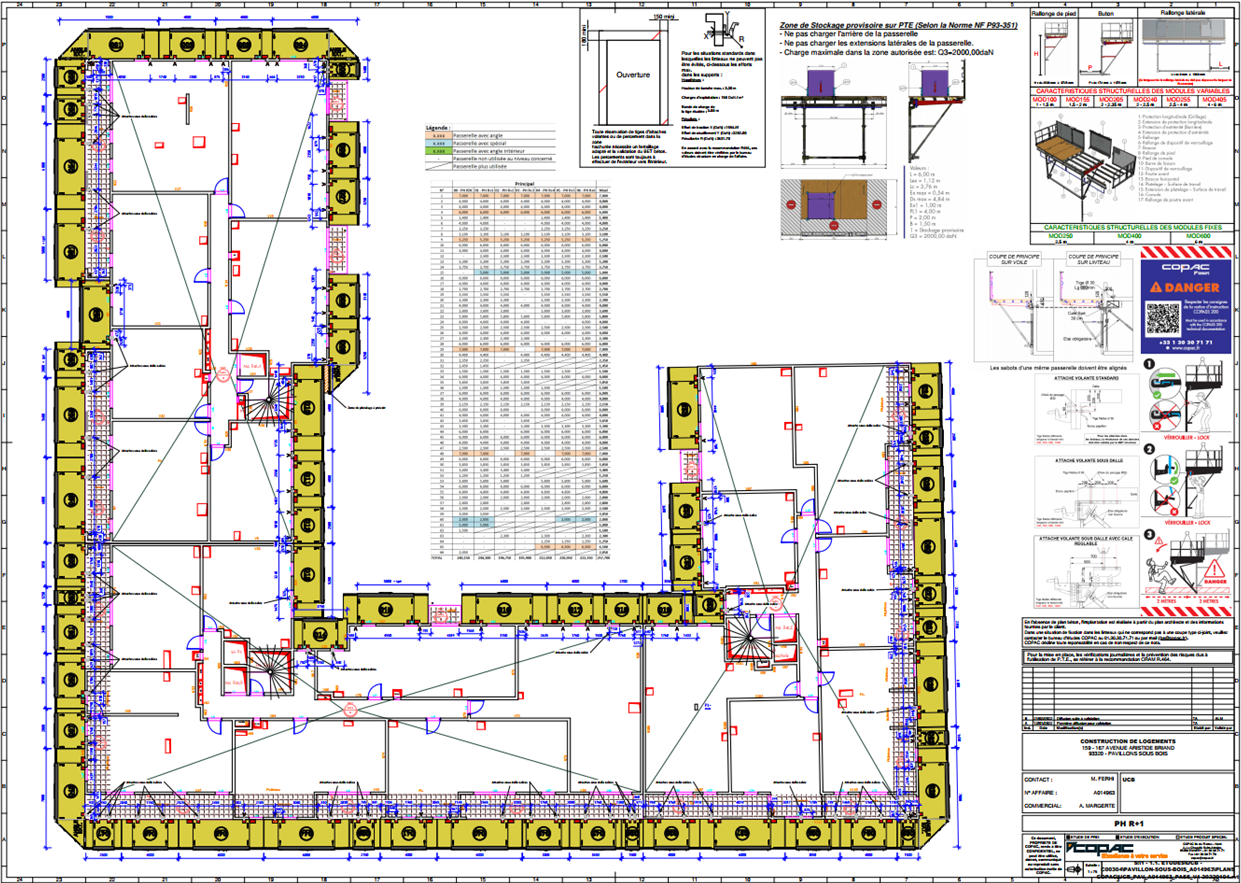

Calepinage par notre bureau d'études

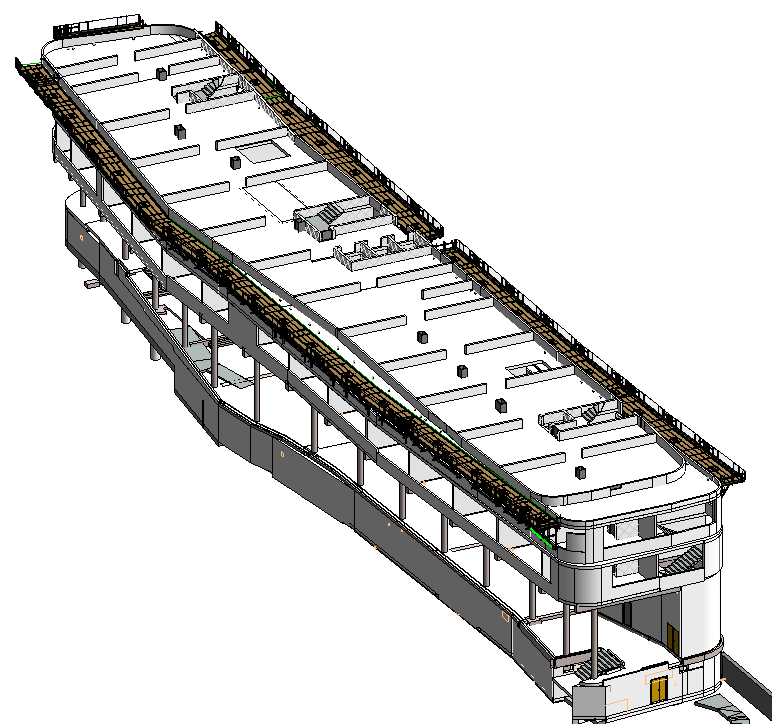

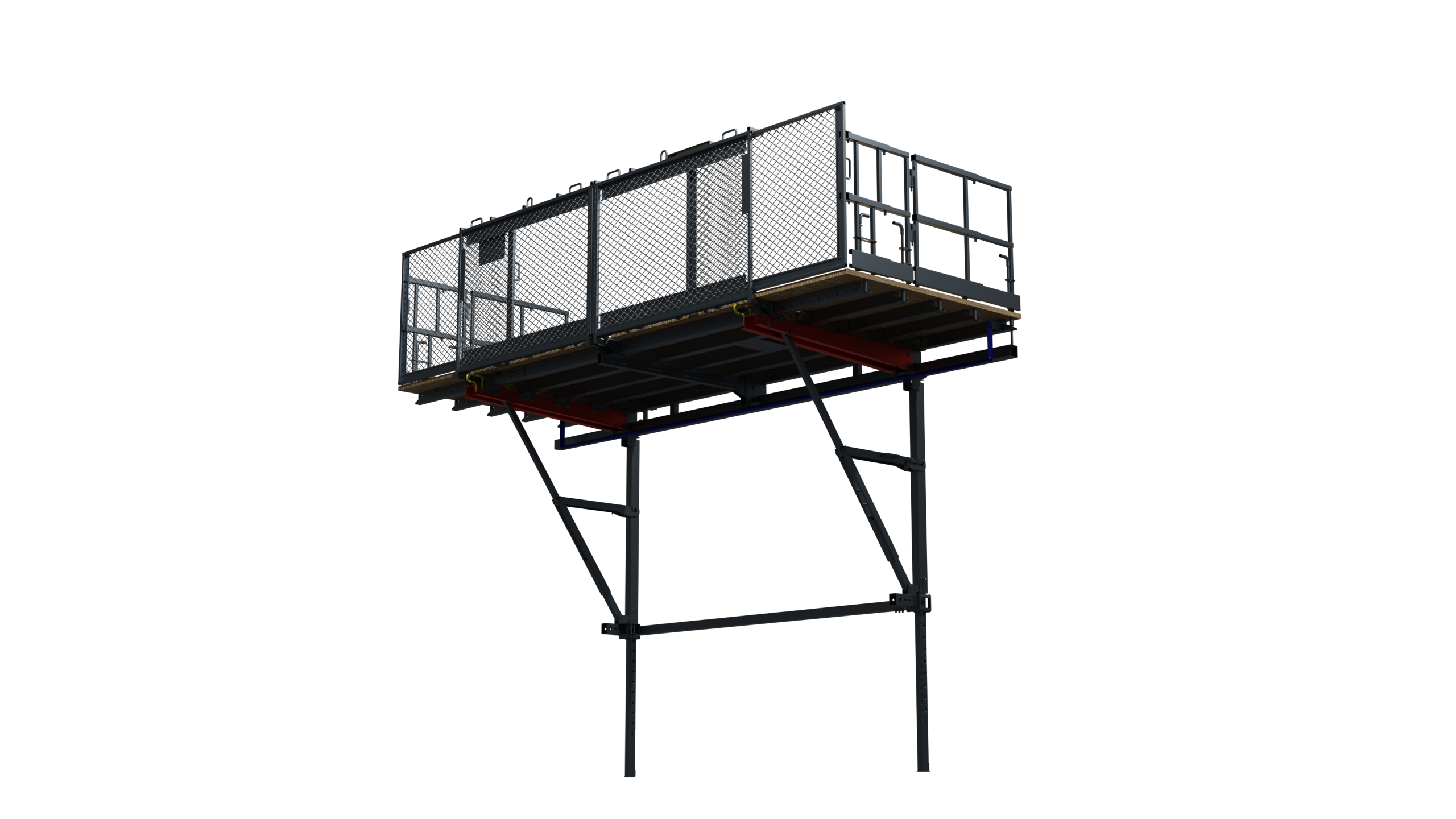

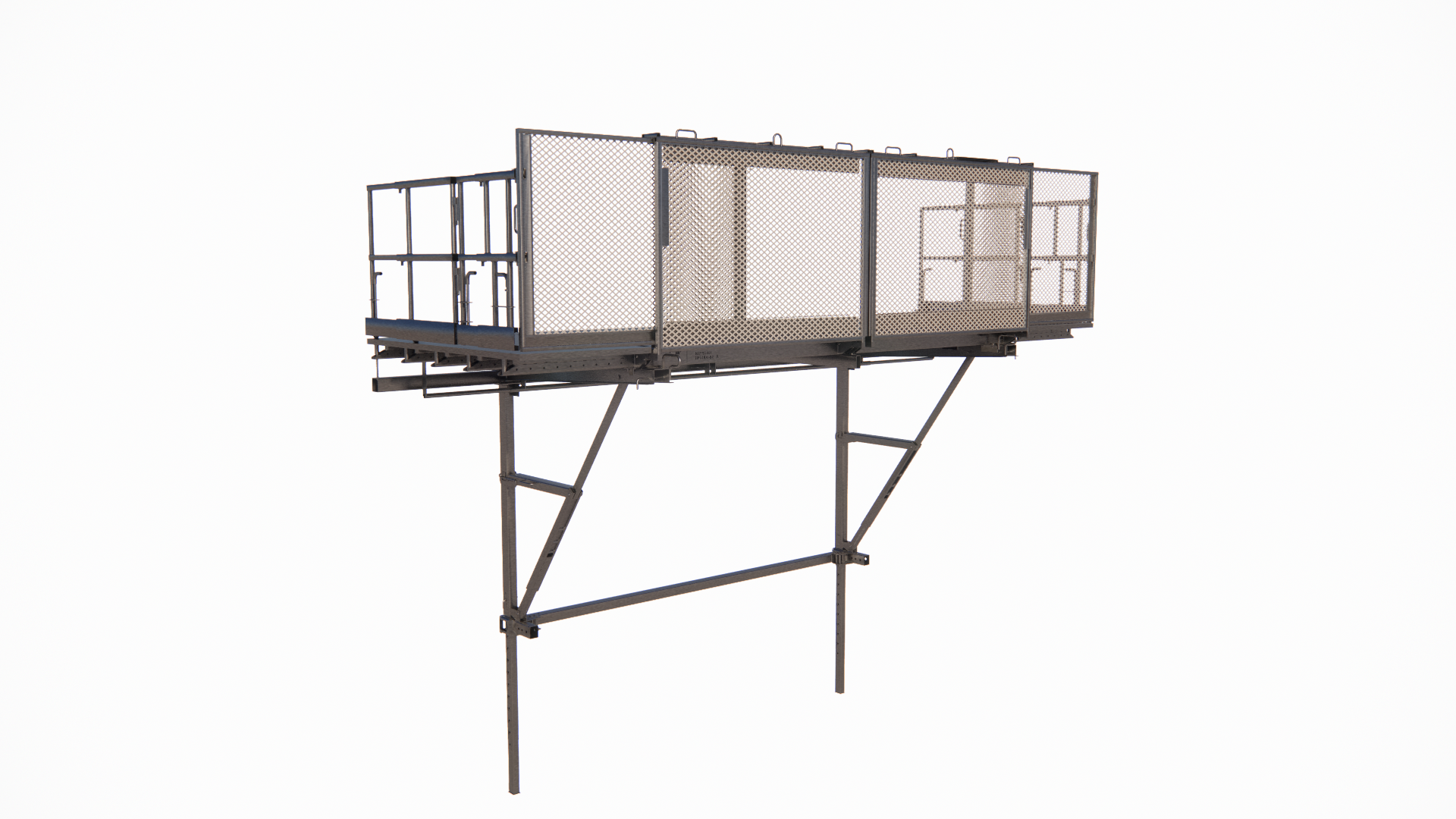

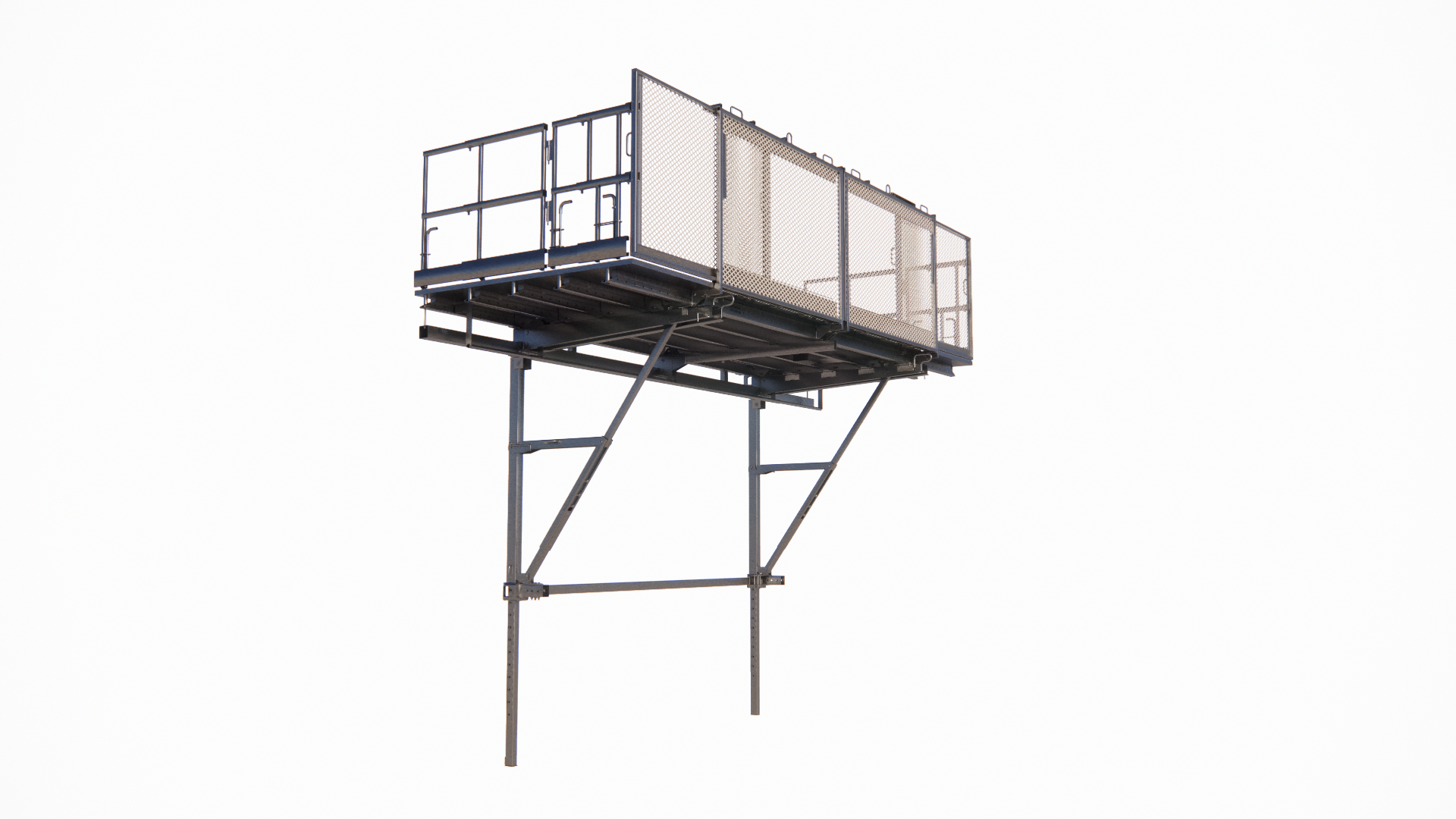

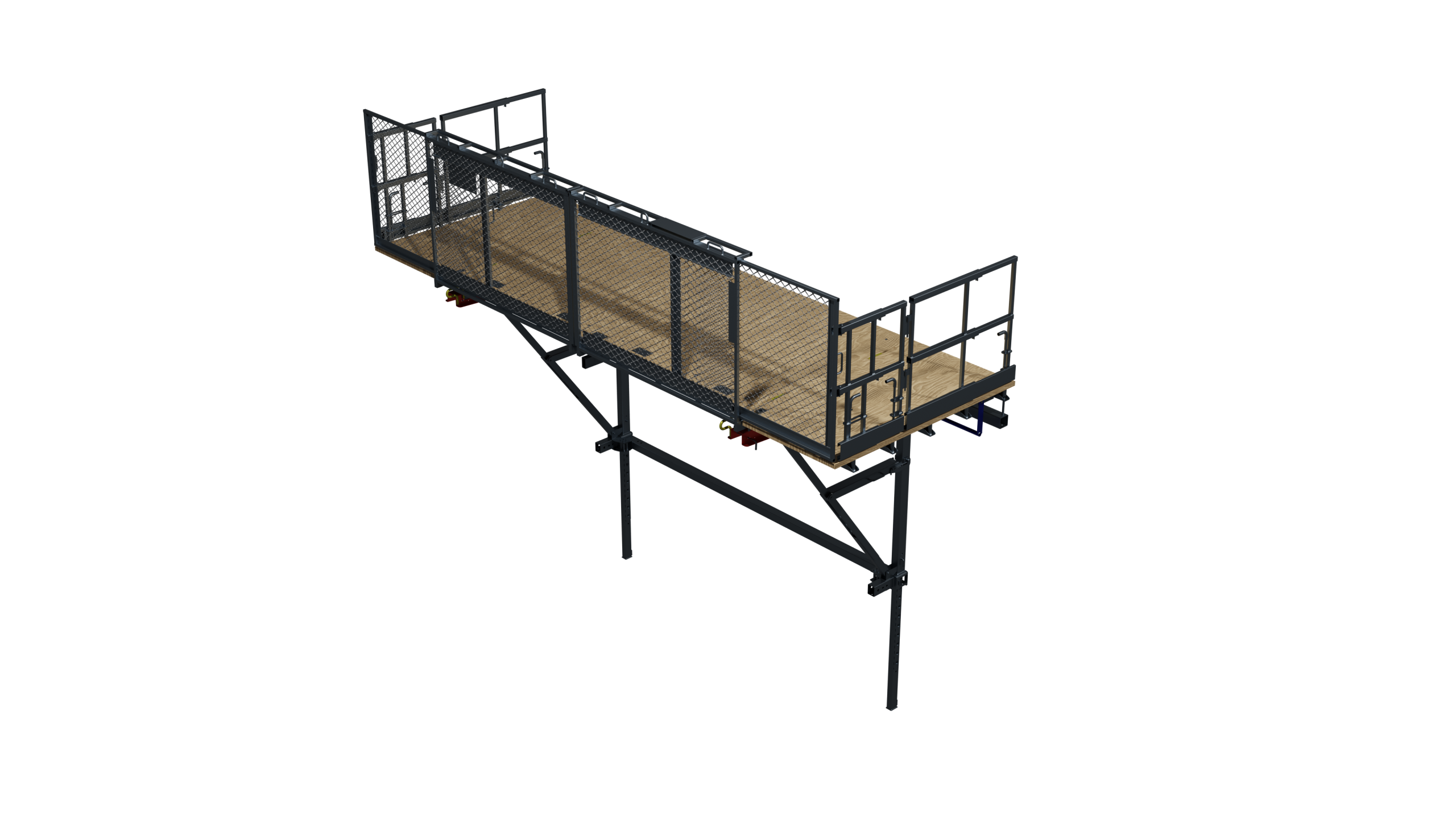

COPASS200 en 3D
Videos gallery
FAQ
General FAQs
CWP stands for Cantilever Work Platform
CWPs are one-piece work equipment that can be used to create a work floor at height. This work floor, which is usually used for laying, stabilizing, adjusting and using vertical and in some cases horizontal formwork elements, also allows the circulation of personnel, the bypassing of shear walls and the storage of tools, materials and accessories.
Yes, our design office produces your layout plans
The name « COPASS200 » is the contraction between COPAC and Passerelle. As for the « 200 », this corresponds to the floor depth of this one.
Our preparation and delivery times depend on the current activity. It generally takes 3 to 4 weeks after receipt of your order form.
For all questions concerning the installation and assembly of our COPASS200, follow the tutorials on our Youtube channel:
Our walkway is intended primarily for reinforced concrete constructions.
The COPAC group provides you with site monitoring, throughout the cycle of your site. From your order to the end of the construction site, we follow you throughout these stages: order, 1/4h security, implementation, delivery, site monitoring, return, end of construction.
The responsibility for verifying the installation of the footbridge lies with the site. Before installing it, do not forget to read all the installation instructions in the instruction manual.
Technical FAQs
Our COPASS200 has 6 variable modules and 3 fixed modules, i.e. 9 modules in total. You will find the dimensions of these in #2 of our instruction manual.
The drilling diameter of a standard fastener is 32mm. Its side is 34cm under a 20cm slab.
Our COPASS200 has 2 extension legs which allow an extension of 1m35 maximum. Our buttons measure 1m37.
The admissible load being linked to the dimension of the gangway, it is necessary to refer to #2 of the instruction manual.
For formwork, the load recovery is 2,150 daN to 8,640 daN depending on the module. For storage, maximum load is 2000 daN
The maximum load is 2000 daN
The height of the fence on all of our COPASS200 is 1m38.
The depth of our COPASS200 is 2m. As for weight and height, it all depends on the module recommended on the site, it can range from 650kg to 1350kg for the weight and 2m35 to 3m72 for the height.
The fixed modules of our CWP cannot receive extensions. For our variable modules, the maximum number of extensions applicable on a gateway is 2.
As their names suggest, the COPASS200 has a depth of 2m. While the depth of the PTE175 is 1m75. The PTE175 is modular and these attachments take up 2T per attachment. The COPASS200 is monobloc and its attachments take up 4T per attachment.
Upon delivery of the footbridges, the documents provided to you are the plans, the instruction manual and the sheets for our footbridges.
The elements to be provided to our Design Office are the plans in DWG format as well as the markings of the facades to be equipped.
The weight of a sub-slab is 25kg.
For a clear and precise demonstration, go to the video of our packing tutorial.
The standard flying ties of our COPASS200 take up 4T per tie.
No, it is not possible to modify the COPASS200 on site. The gangway modules are prepared upstream in our workshop with all the equipment and skills necessary for assembly/disassembly in complete safety.
Engineering office FAQ
To obtain the IT plans, you must download them from a WeTransfer link (non-perishable) which was sent to you at the same time as the quote by our Sales Administration department.
The paper plans are automatically sent during the first delivery of footbridges. If they are not there, please file a complaint with the sales representative responsible for your account.
You must contact the sales representative responsible for your account who will study your needs with our BET according to the nature of the request.
Your sales advisor is there to answer your questions. Contact him.
Logistics FAQs
The logistics service is available from 8 a.m. to 12 p.m. and from 1 p.m. to 5 p.m. on 04 78 21 39 39
Our depot is located in Mions (69), 22 rue d’Espagne. Another depot is located at the Copac Groupe head office, in Beauchamp (95).
After-sales FAQ
You must contact the sales representative responsible for your account. He will come to your site as soon as possible.
For your request to be taken into account as soon as possible, call 04 78 21 39 39 and the sales advisor in your area will quickly contact you.
Do not hesitate to contact the logistics department on 04 78 21 39 39 as well as the sales representative responsible for your account.
All administrative documents must be sent to the sales representative responsible for your account as well as to our Sales Administration department.
From the day our design office receives all the elements, the time required to obtain an estimate can range from 7 to 21 days depending on the period of activity.
