PTE 175 modular platform
Sommaire de page
Description
Copac CWP Cantilever work platforms are modular and delivered ready to use.
To ensure a safe assembly and installation, they include a technical handbook as well as layout plans and technical data sheets designed by BE Copac.
REF : PTE175
Technical Specifications
- An assembly of brackets/platforms & extensions allowing to design pedestrian crossings from 1m to 8m in length.
- Custom designed pedestrian walkways available.
- CWP with a depth of 1.30 – 1.50 – 1.75 or 2.50 m
- Welded wire mesh screening, mesh size 50 mm x 50 mm, with a height of 2m.
Installed vertically or with a 20° angle of inclination - Wire mesh screening at walkway end or extended barrier closure Max.
- Permissible load within the brackets: 2 T
Download documentation

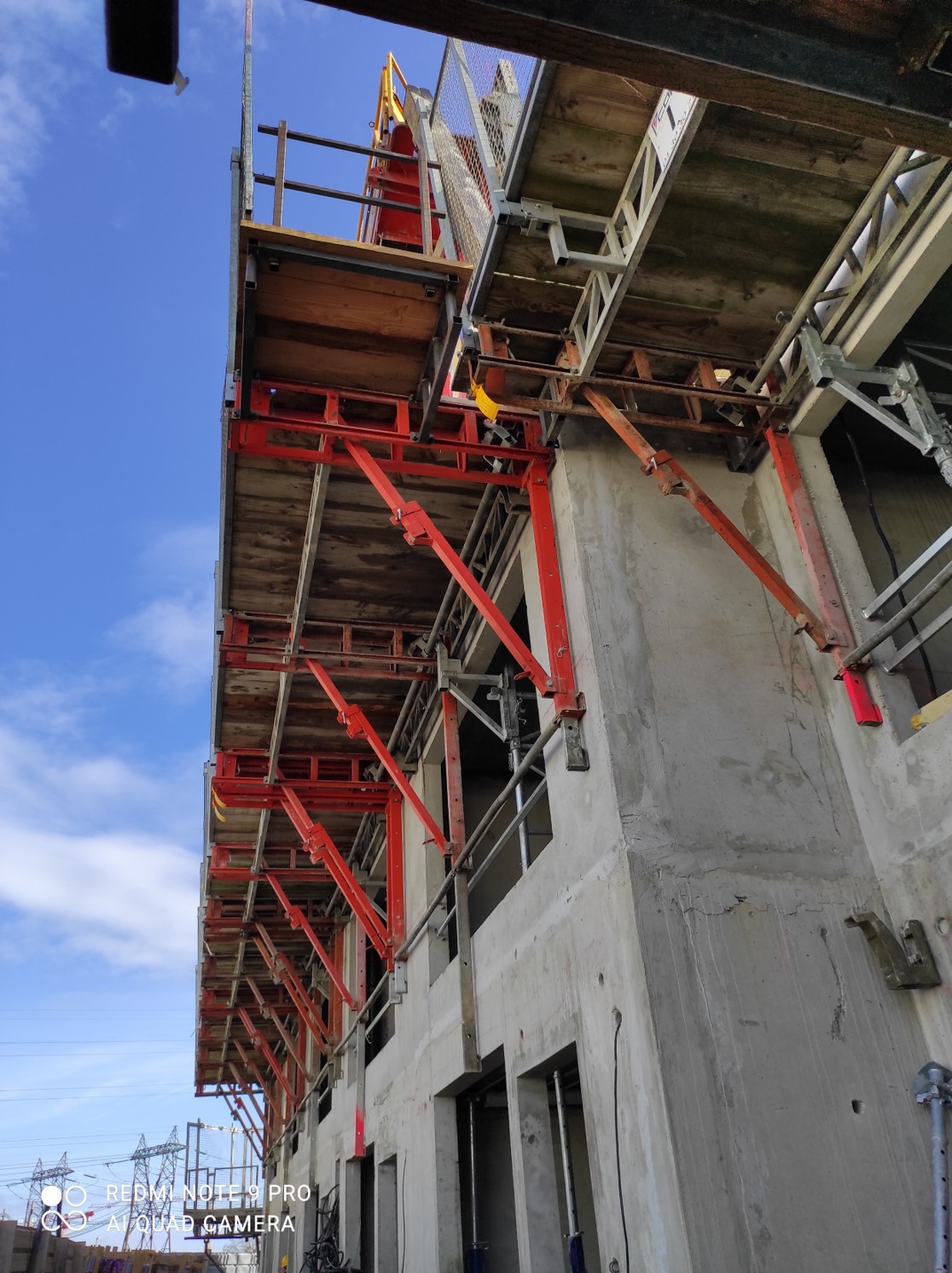

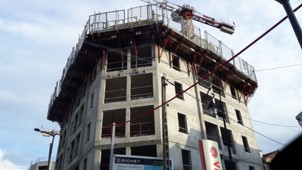

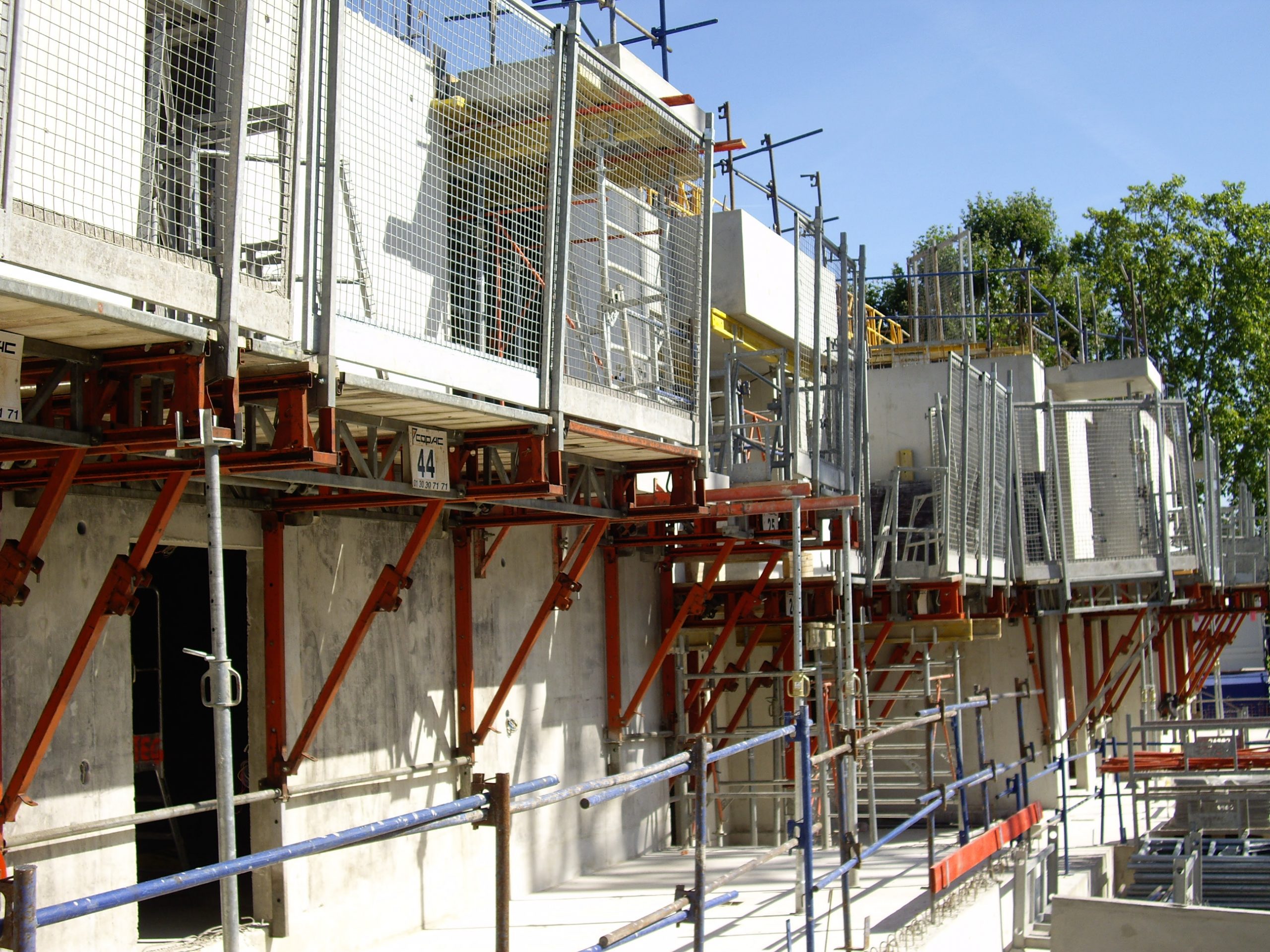

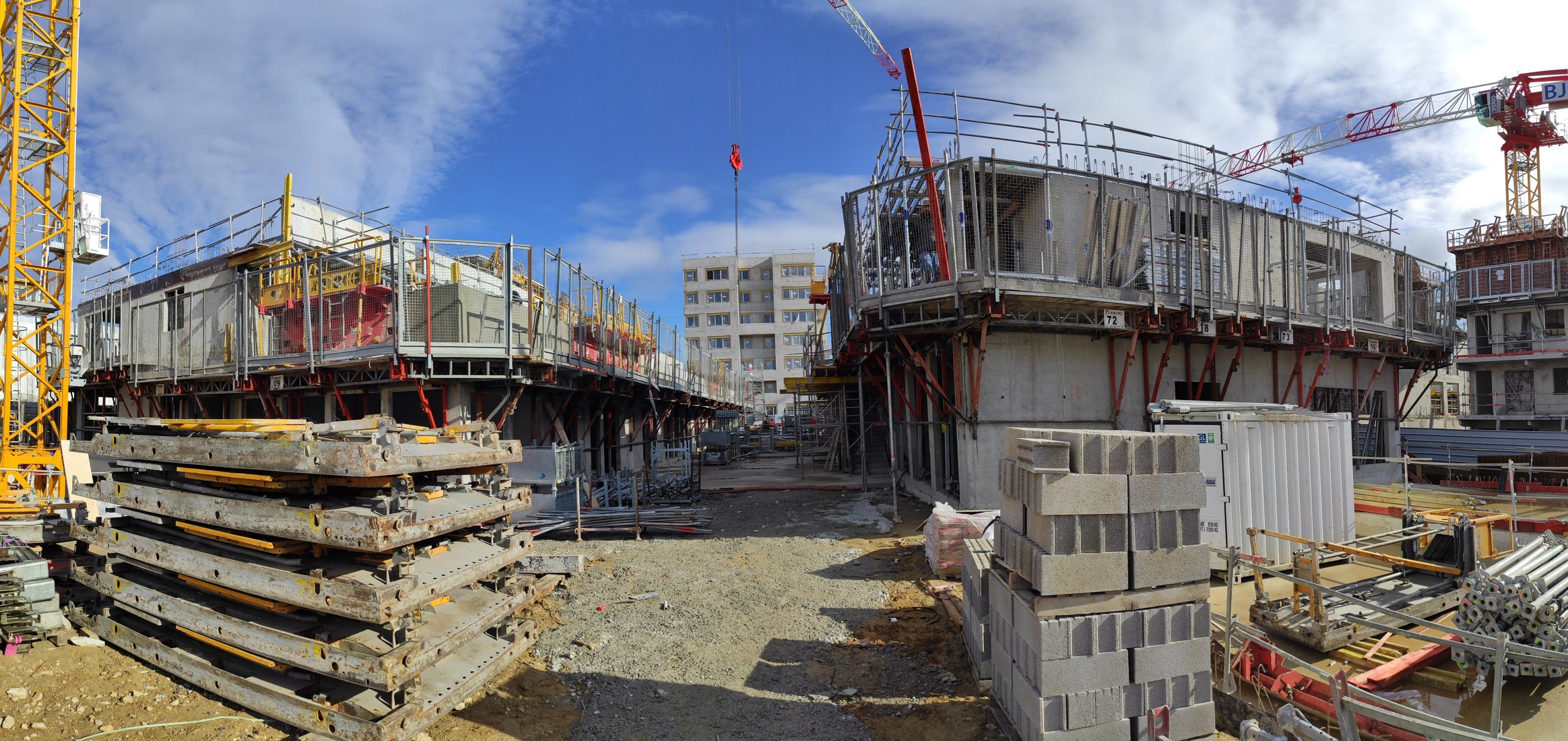

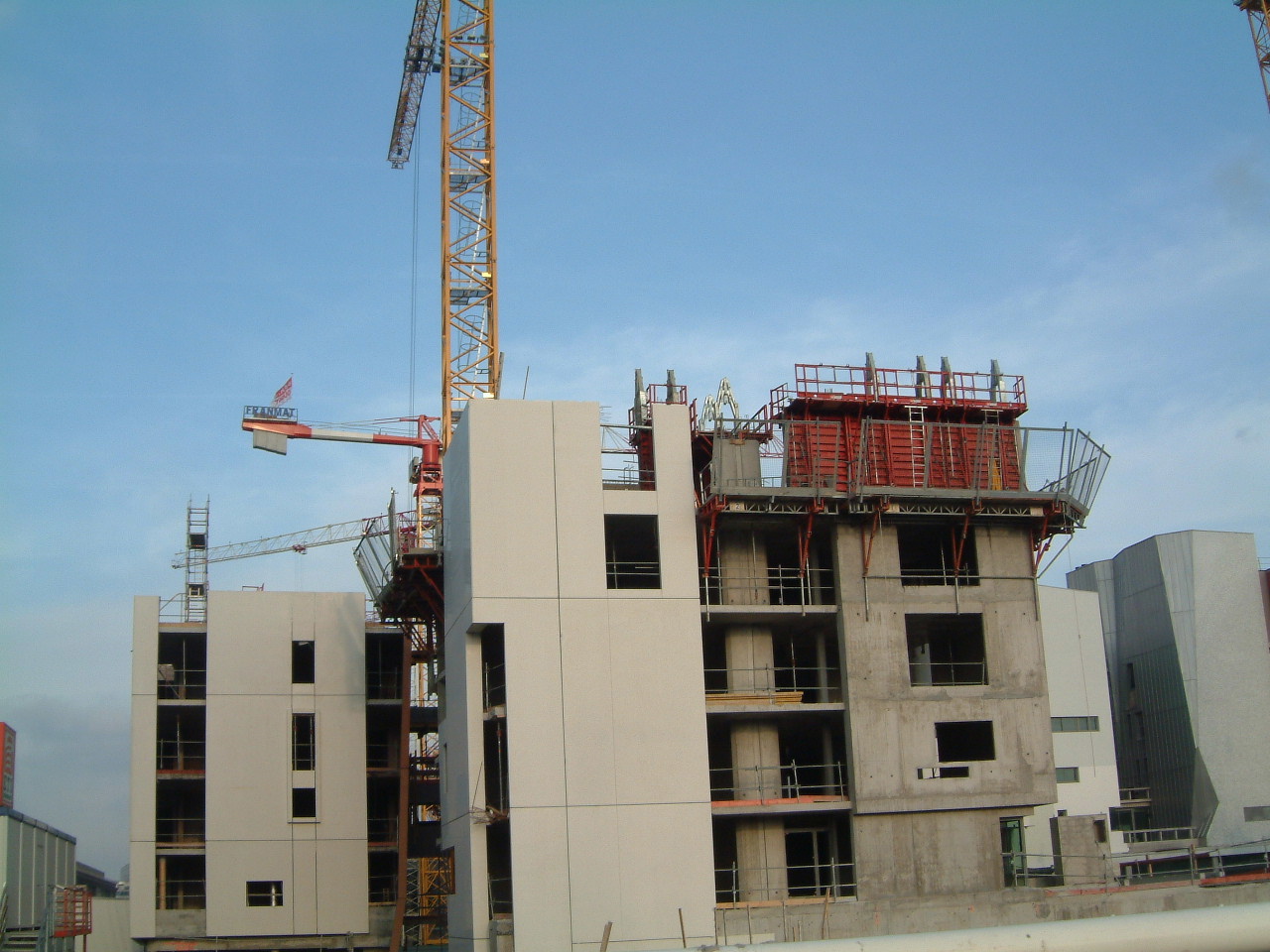

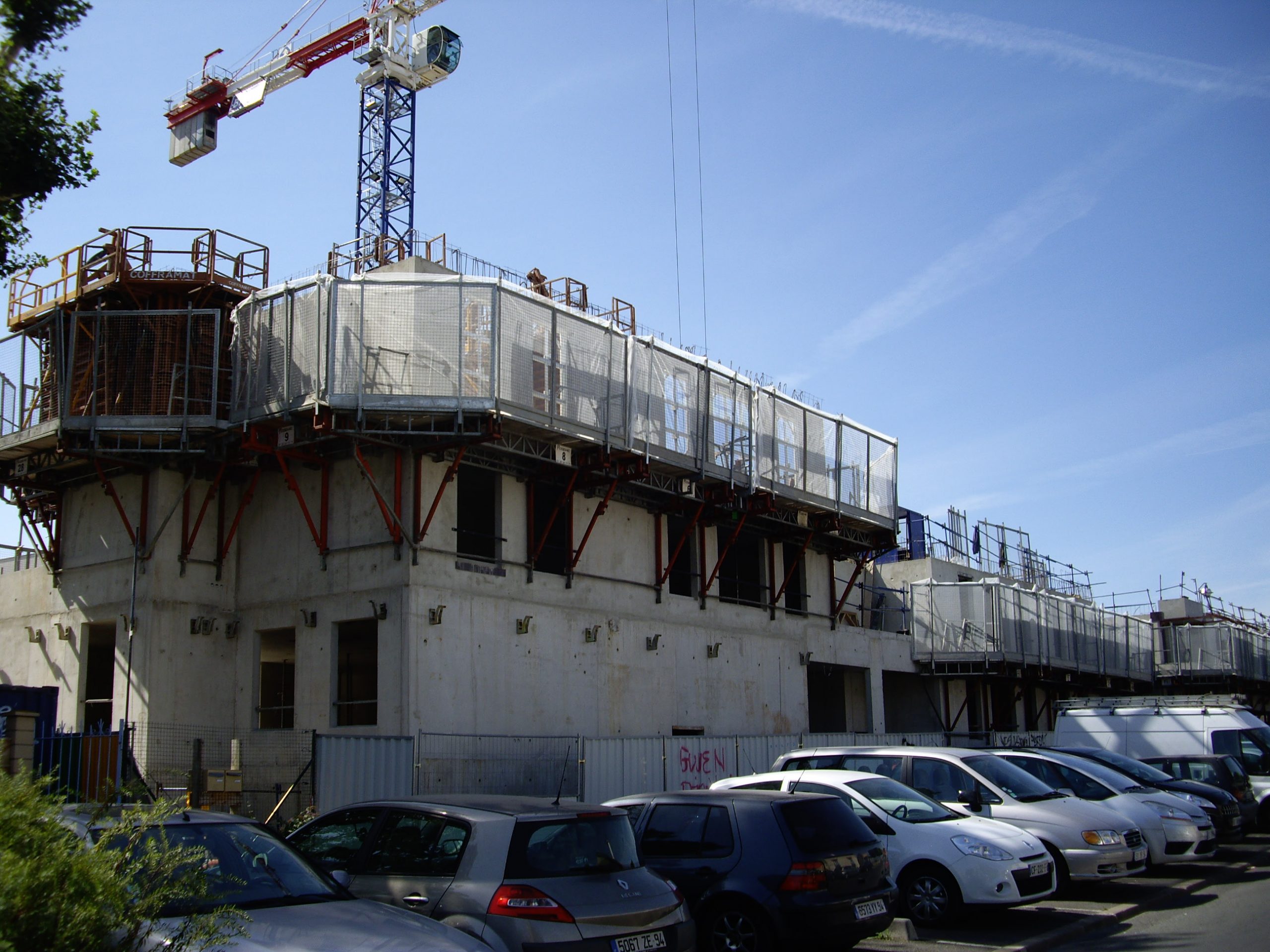

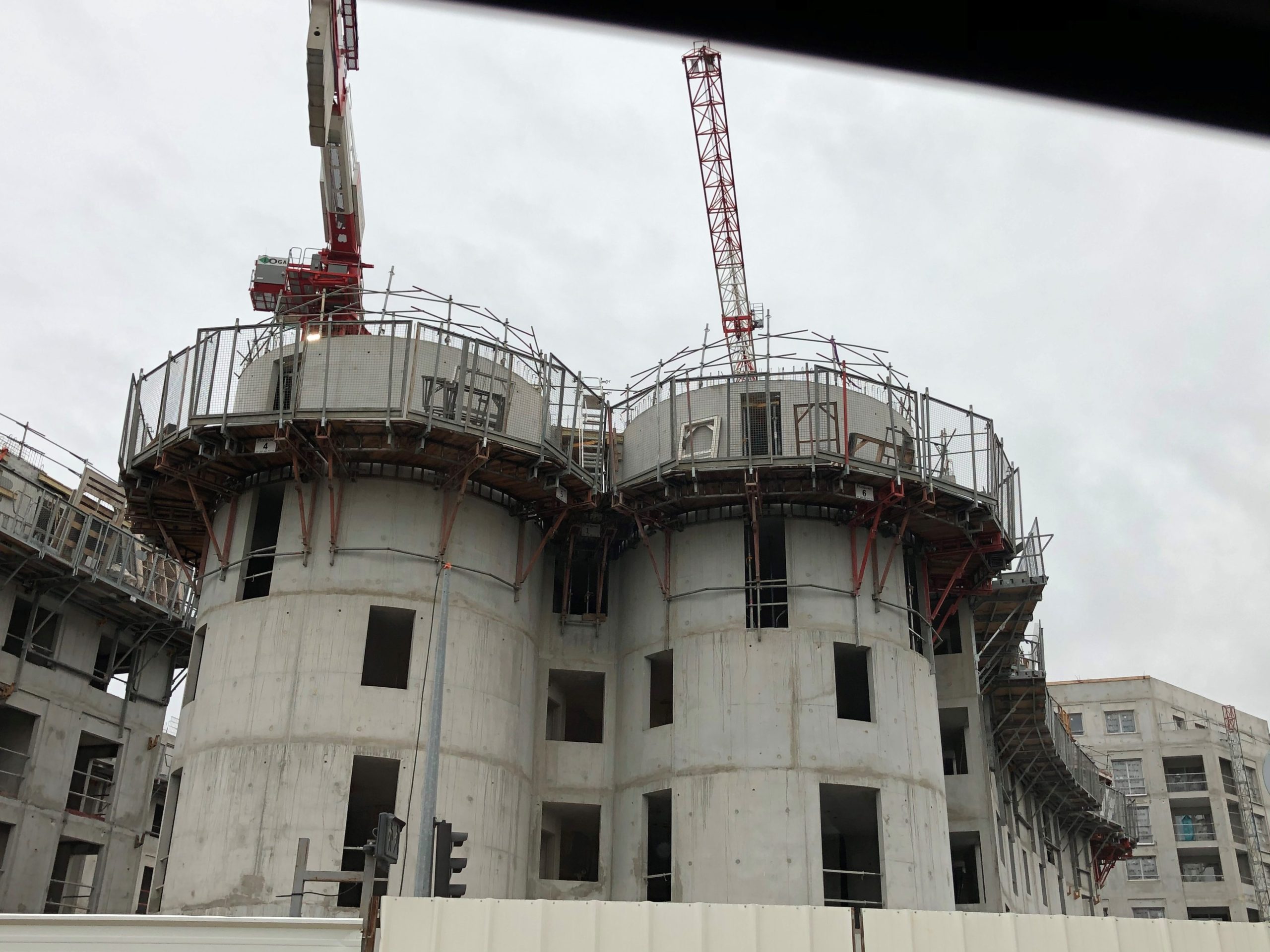

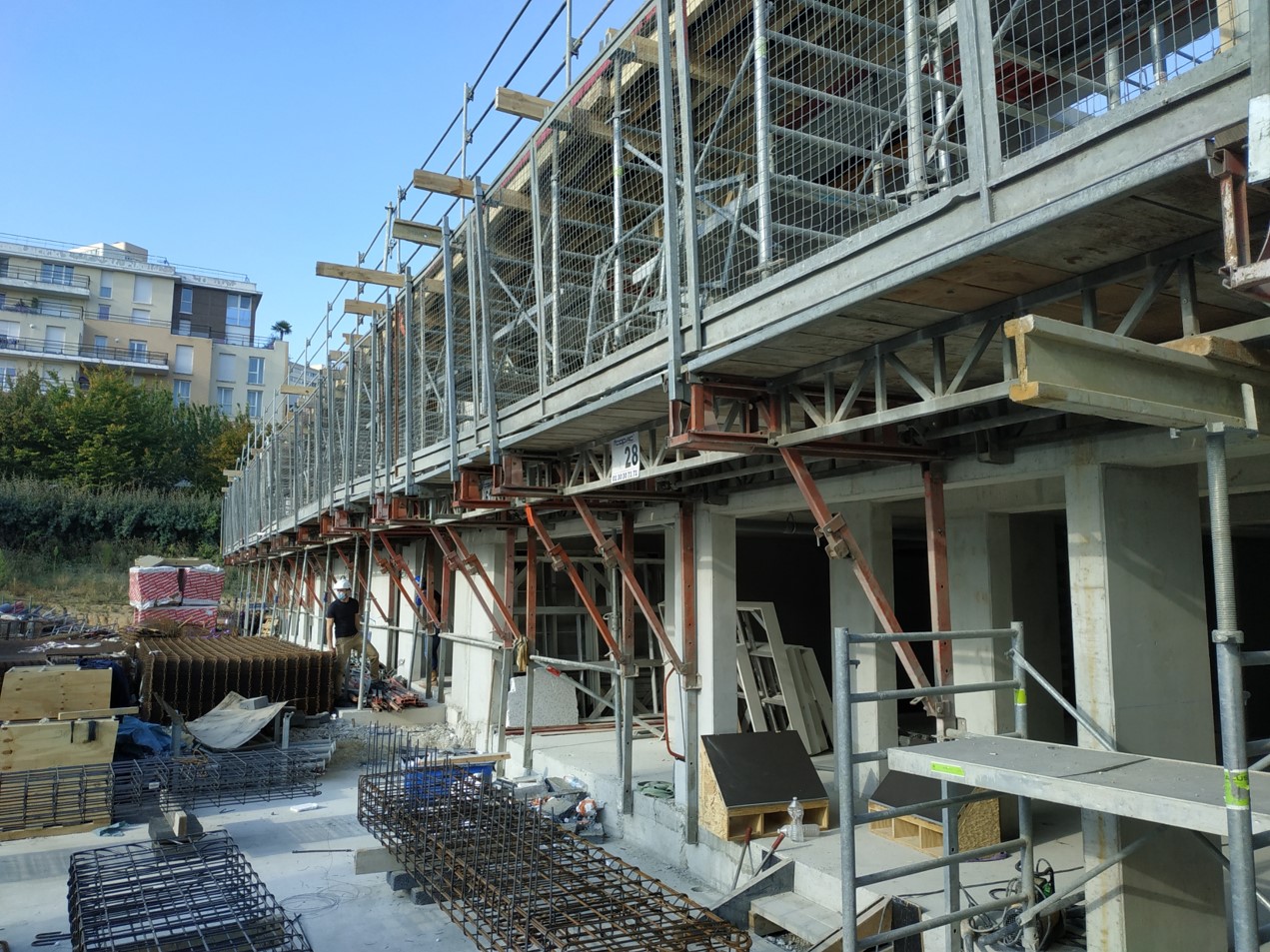

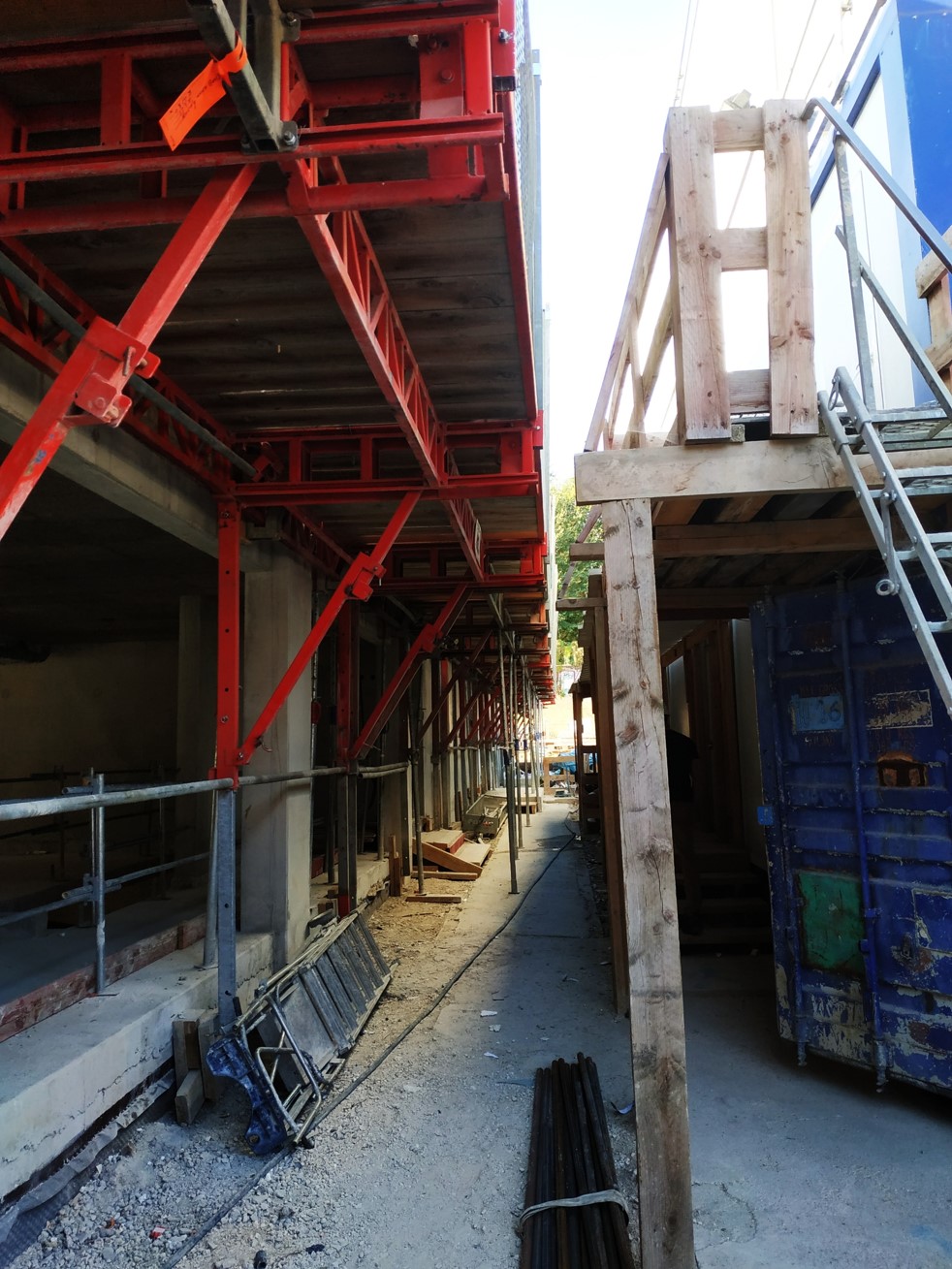

Photos gallery

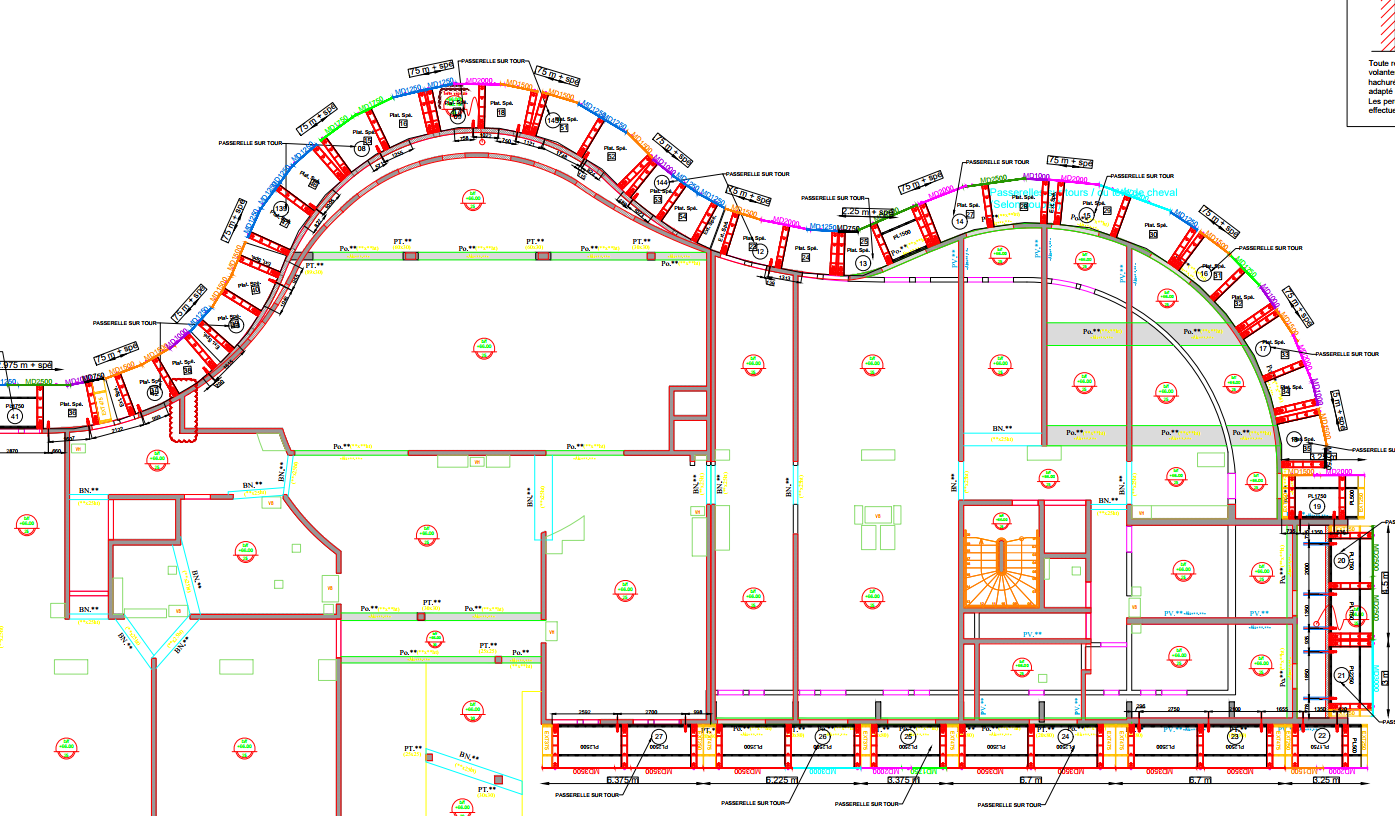

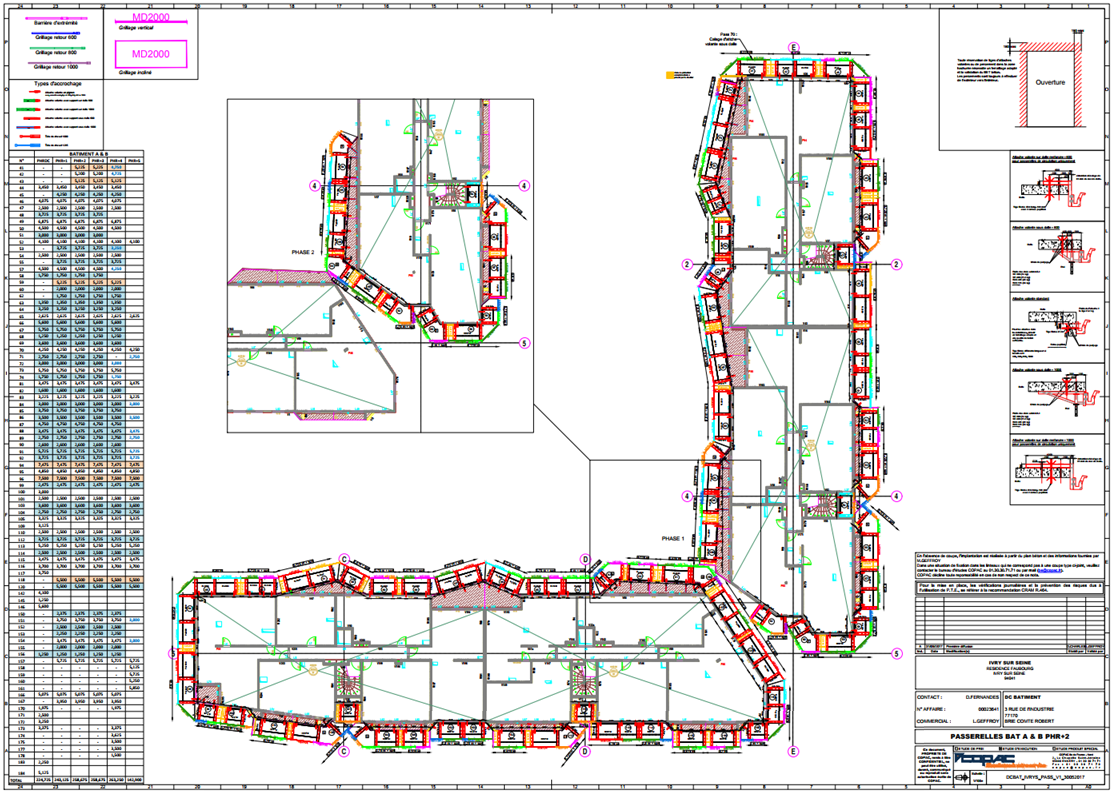

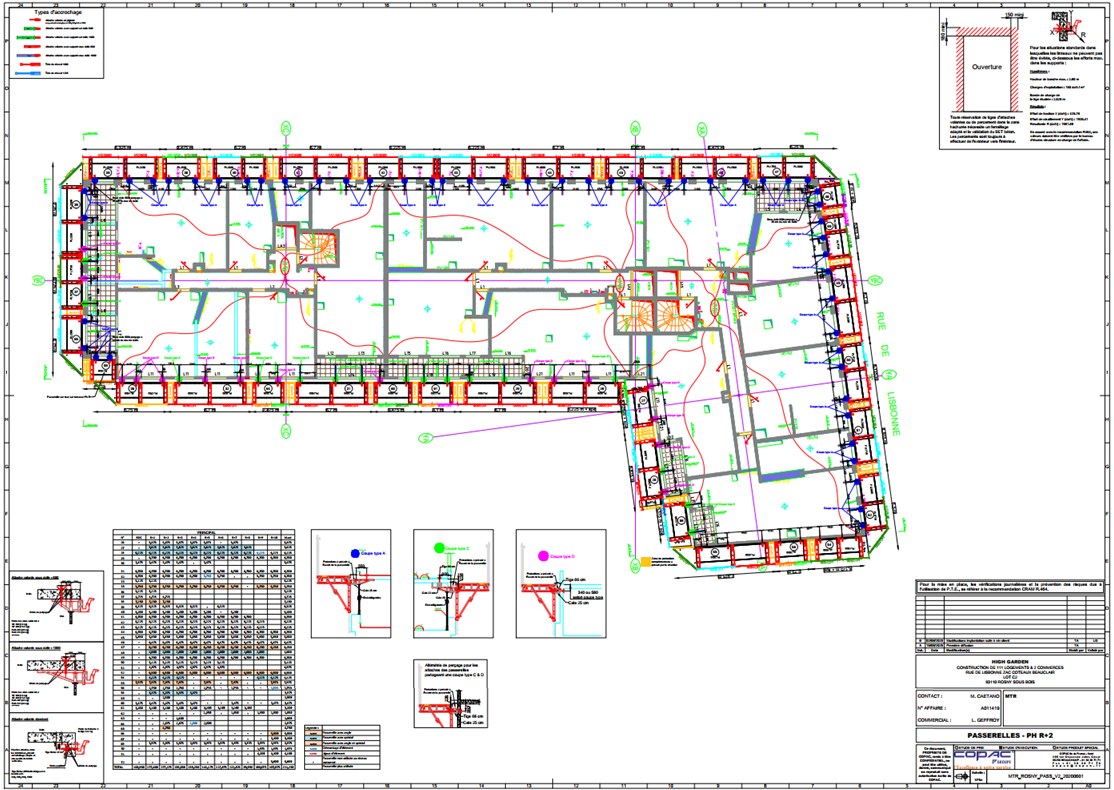

Développement bureau d’études

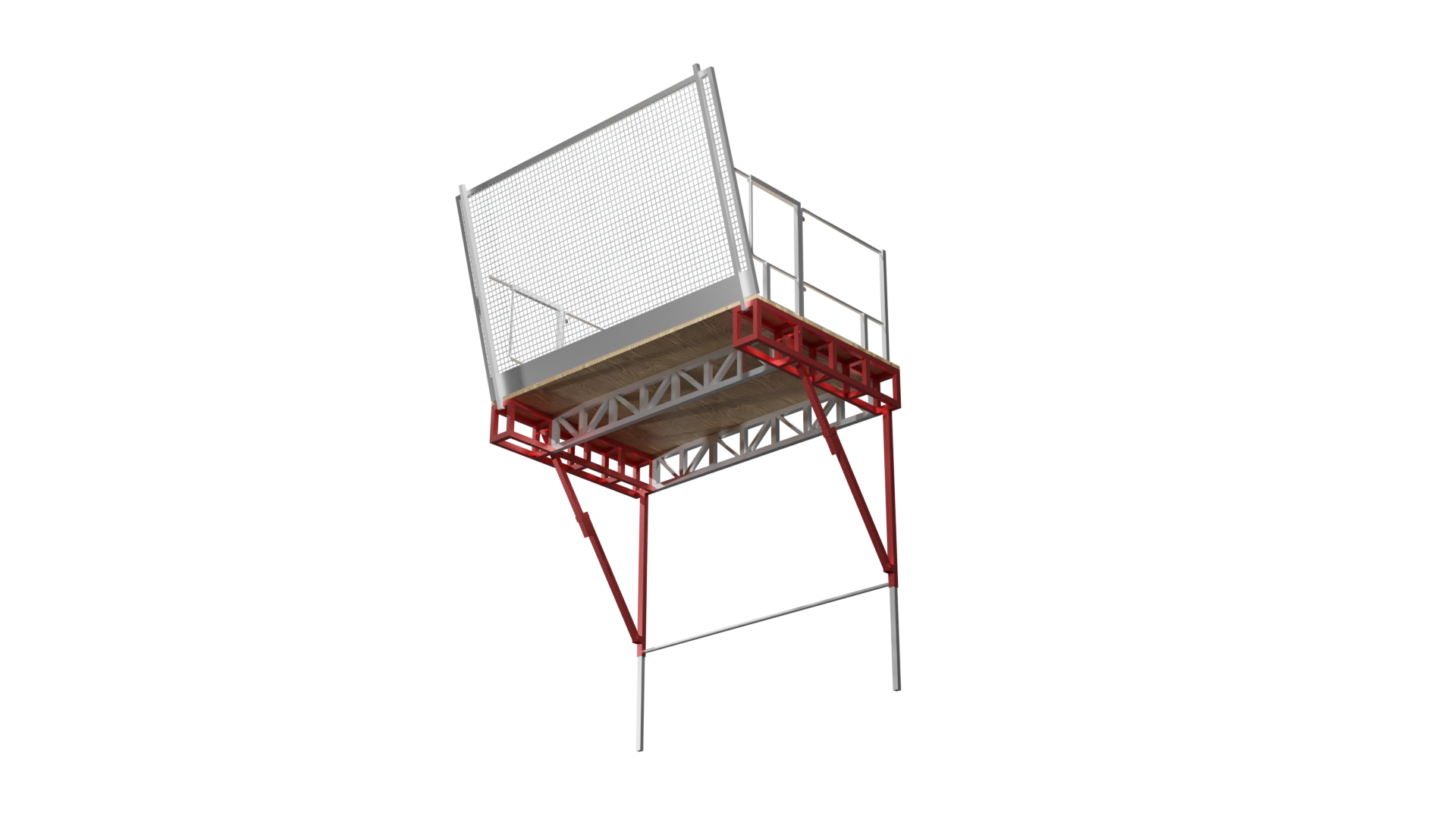

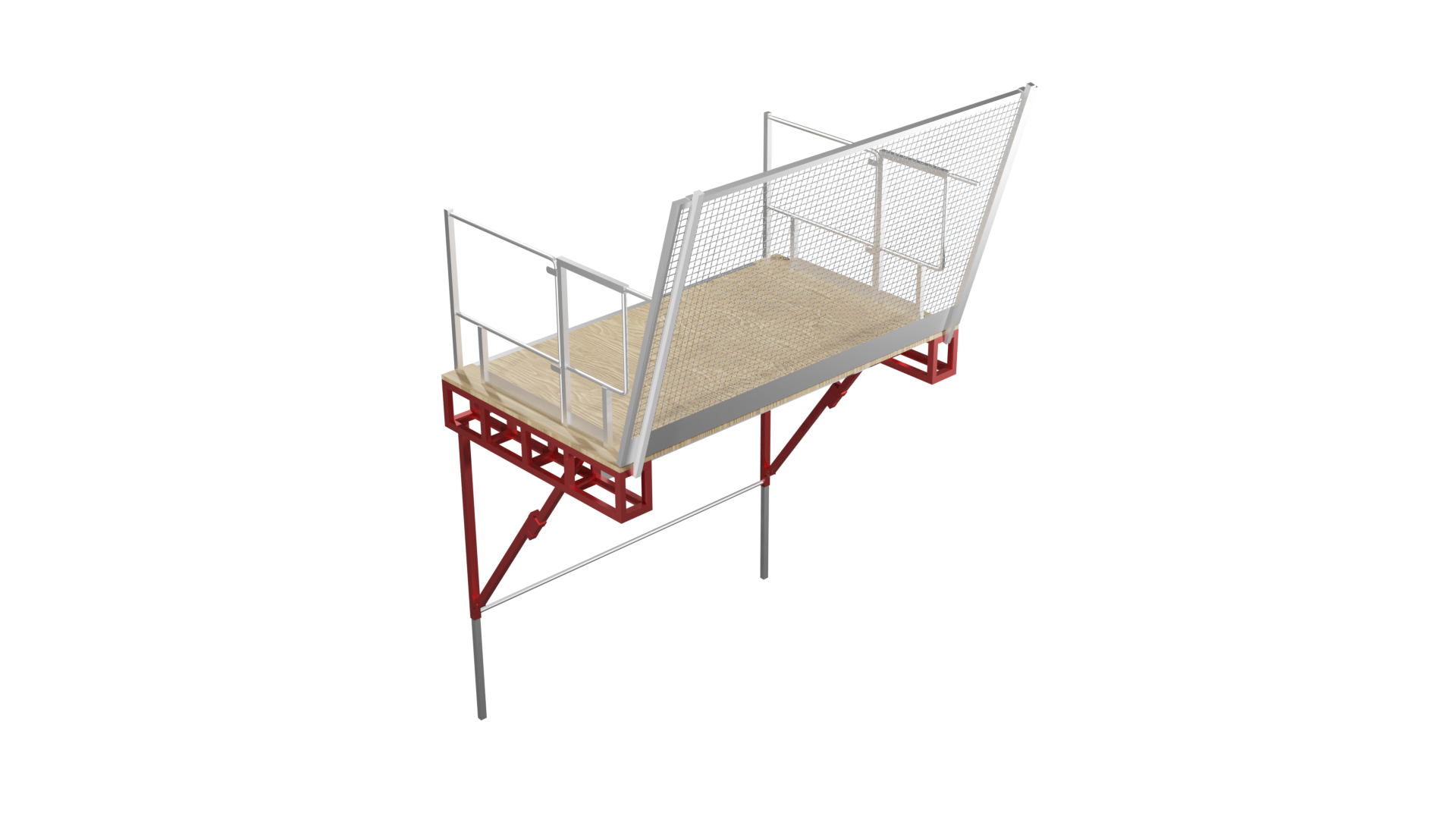

Modélisation 3D
