H12 Vertical Formwork
Sommaire de page
Description
HUSSOR FORMWORK SHUTTERING PANEL
Formwork shuttering panels designed for high performance and quality work, while ensuring workers’ safety on the construction site.
REF : H12
Technical Specifications
- Concreting pressure up to 15 T / m².
- Formwork sheet in 5 mm thick T’CAR (stainless steel)
- Standard formwork includes an aluminium trapdoor with assisted opening
- Peripheral protection with height of 1.10 m

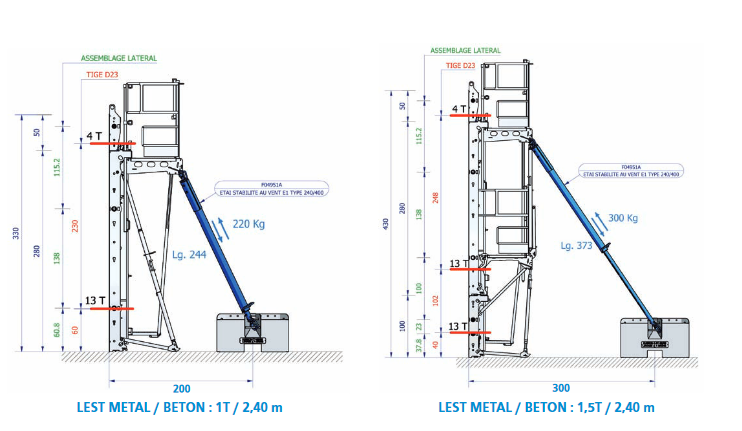

- Wind stabilisation of max. 85 km / h
- STABILEVE 120 PLUS® compass
- Metal/concrete weights of 1 – 1.5 – 2 T
- One-man installation
- Quick and easy 2-point lateral and vertical assembling
- Diwidag 10 pitch
- High pass-through rods are not included in the concrete
- The H12 formwork range is fully operational with the H10 formwork range and related accessories

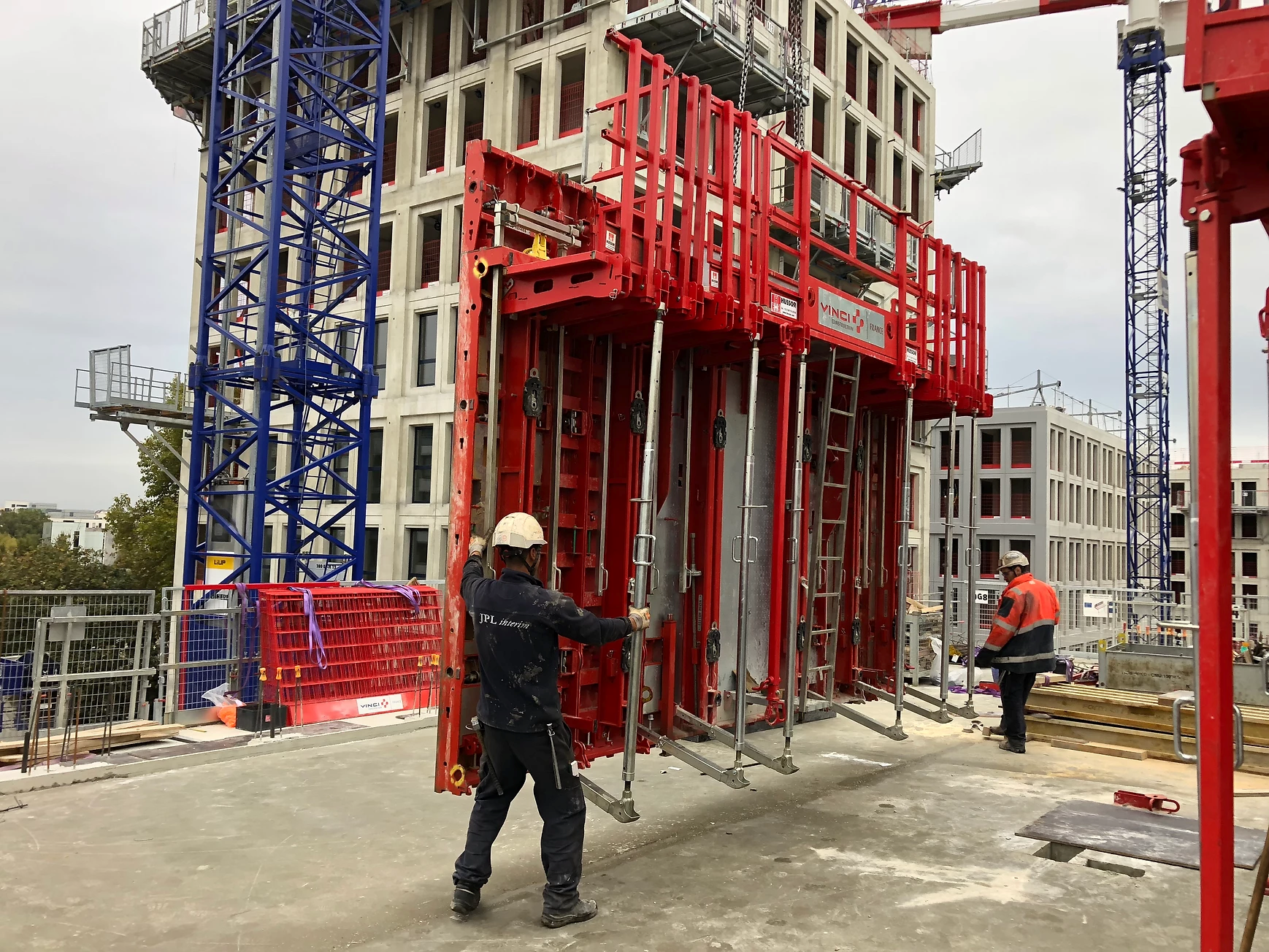

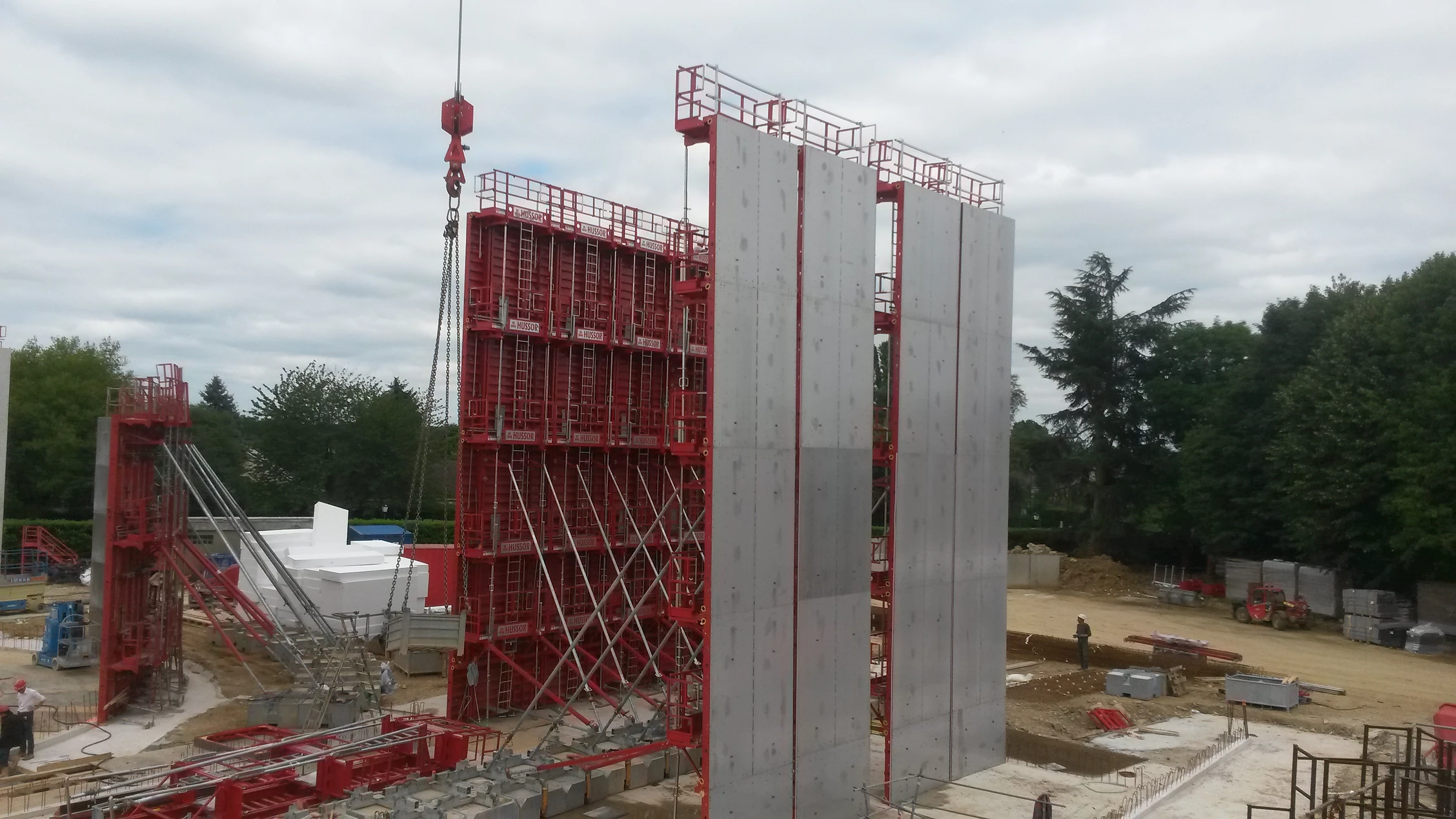

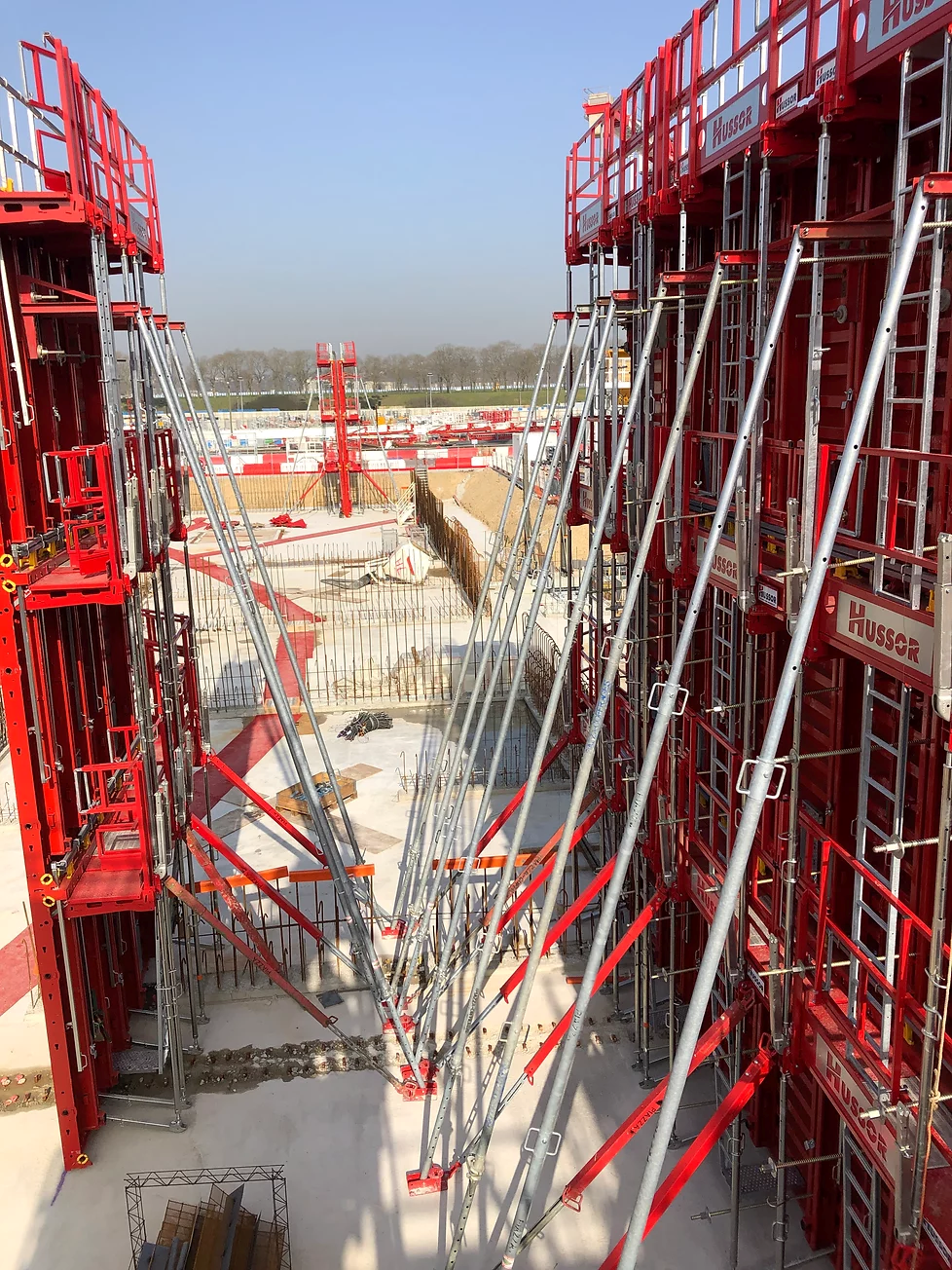

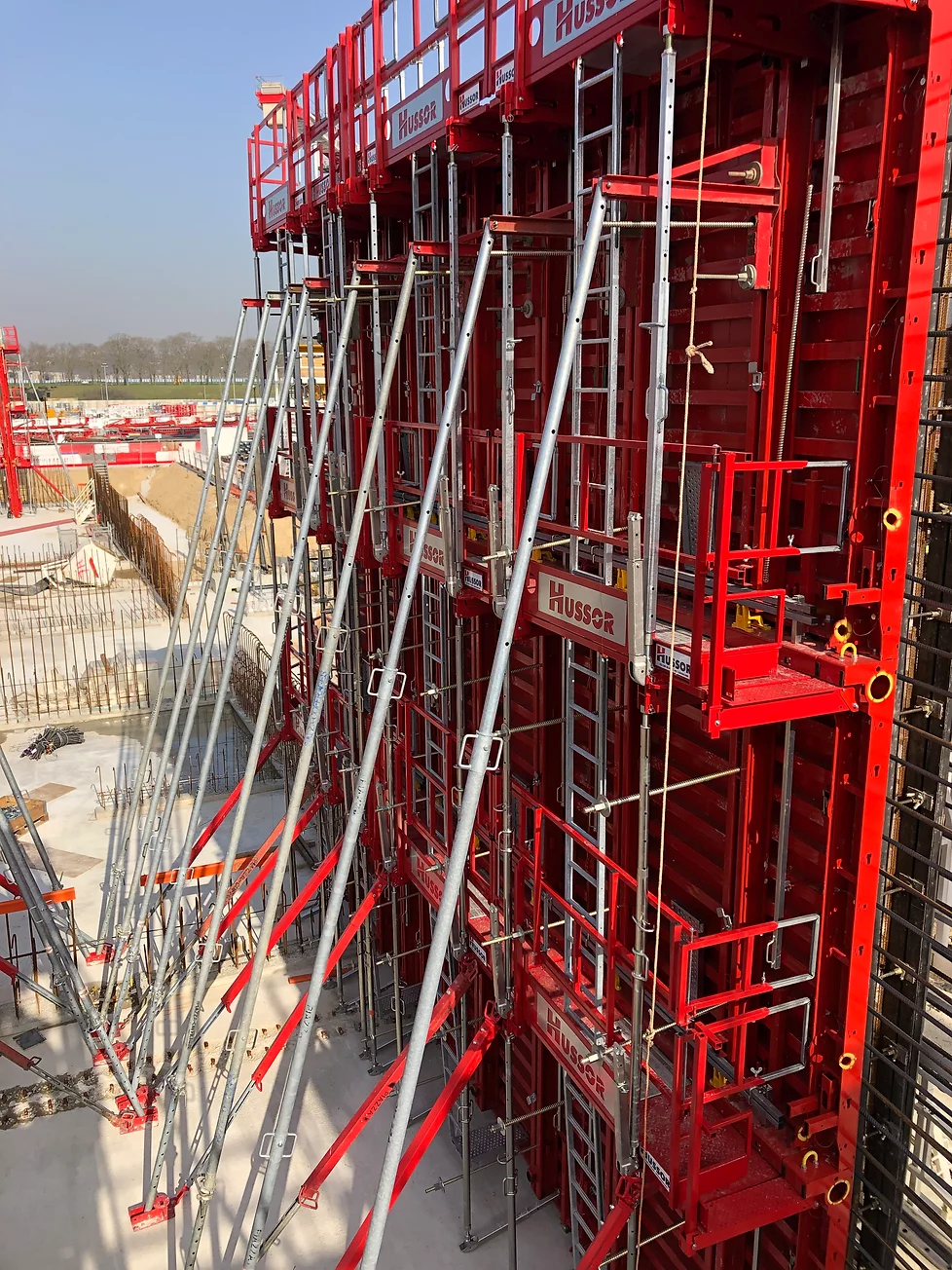

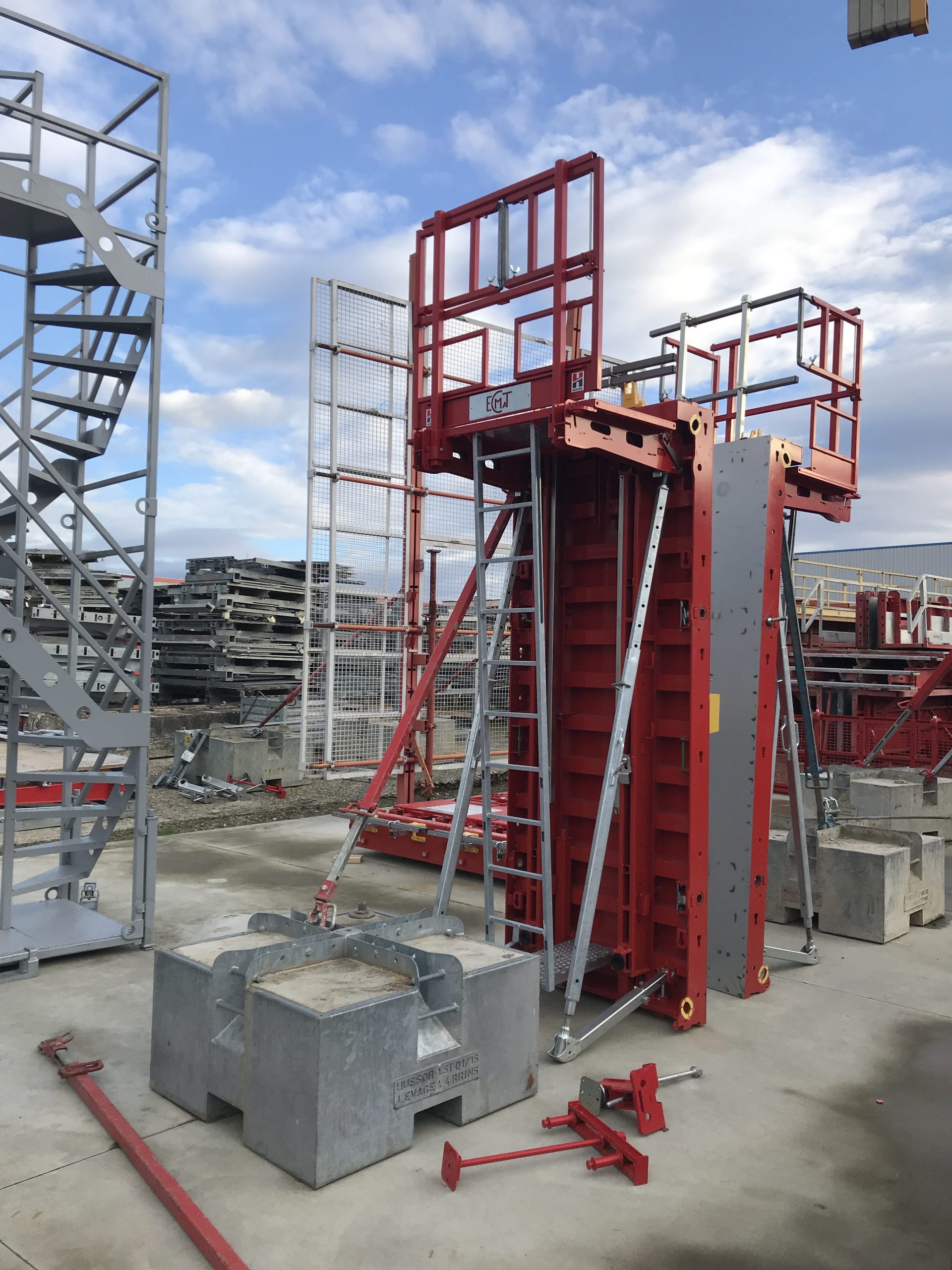

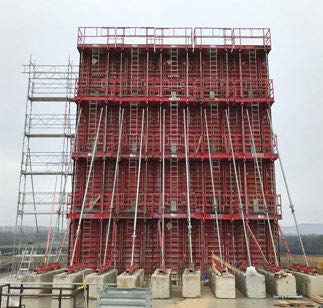

Photos gallery

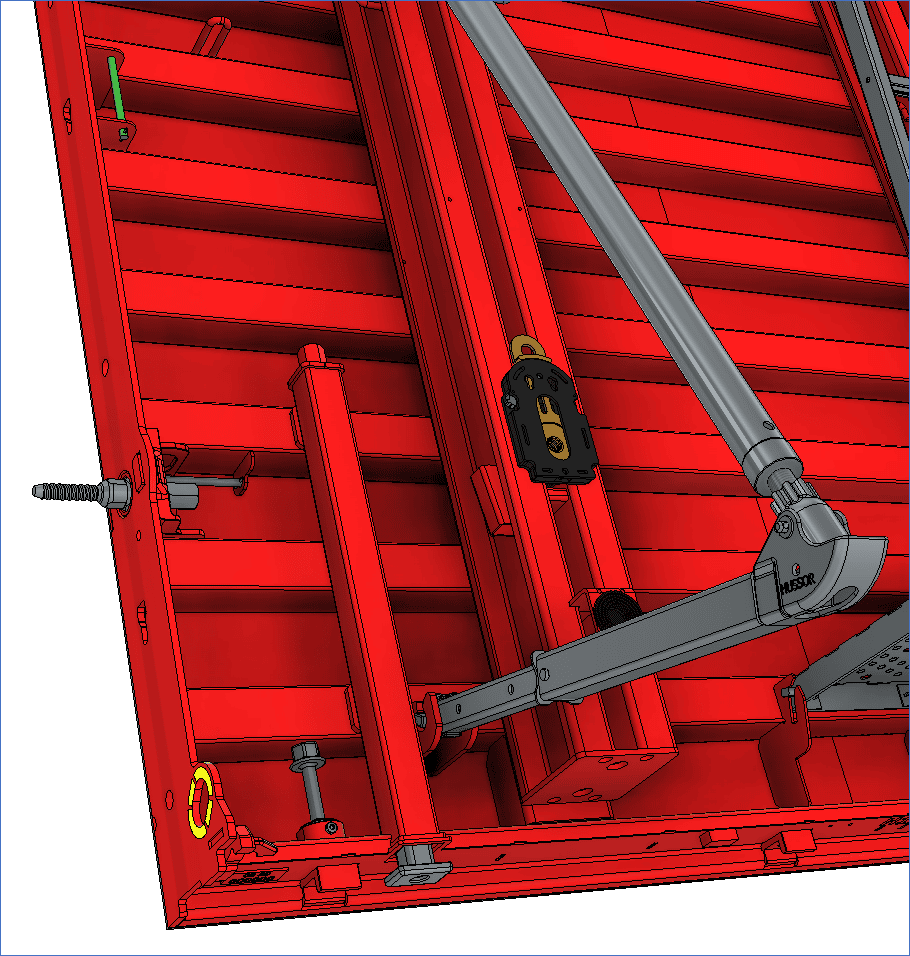

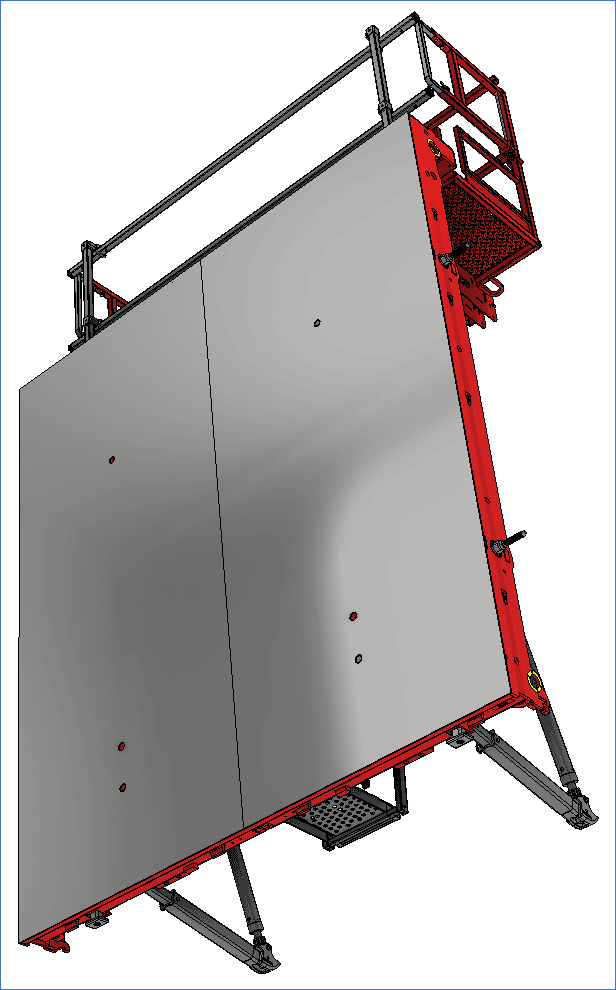

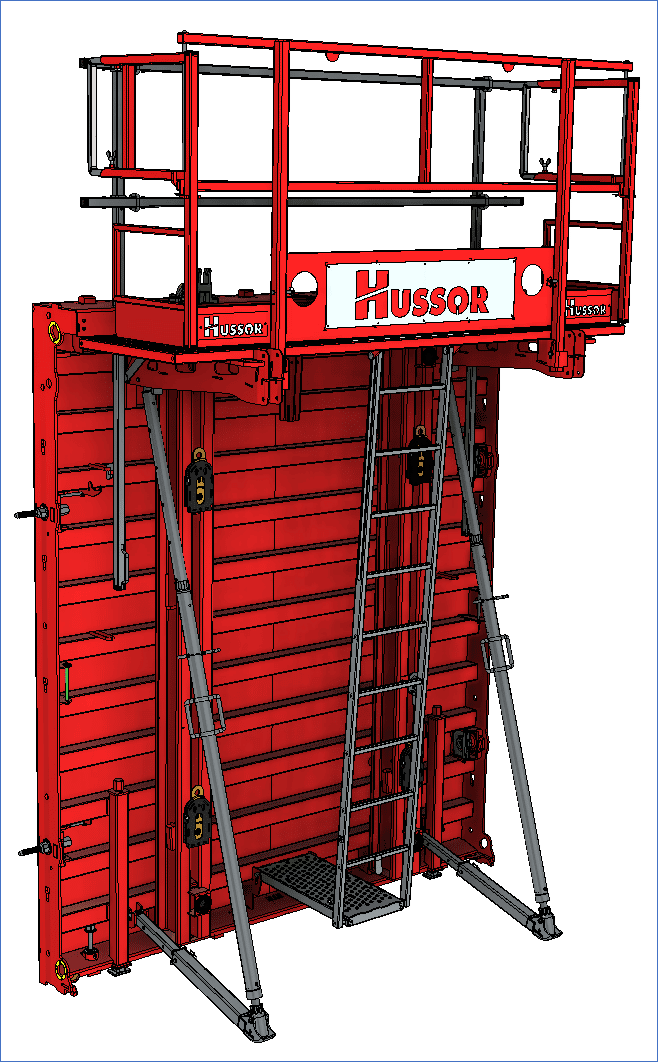

Nos Banches HUSSOR 12+ en 3D

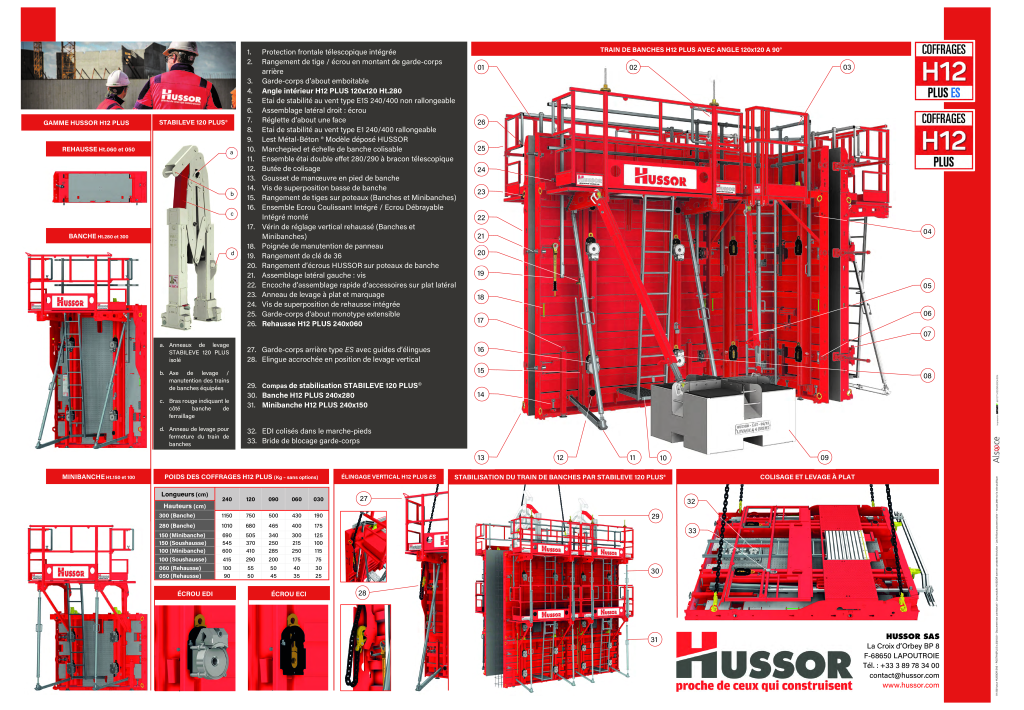

Nos Banches HUSSOR 12+

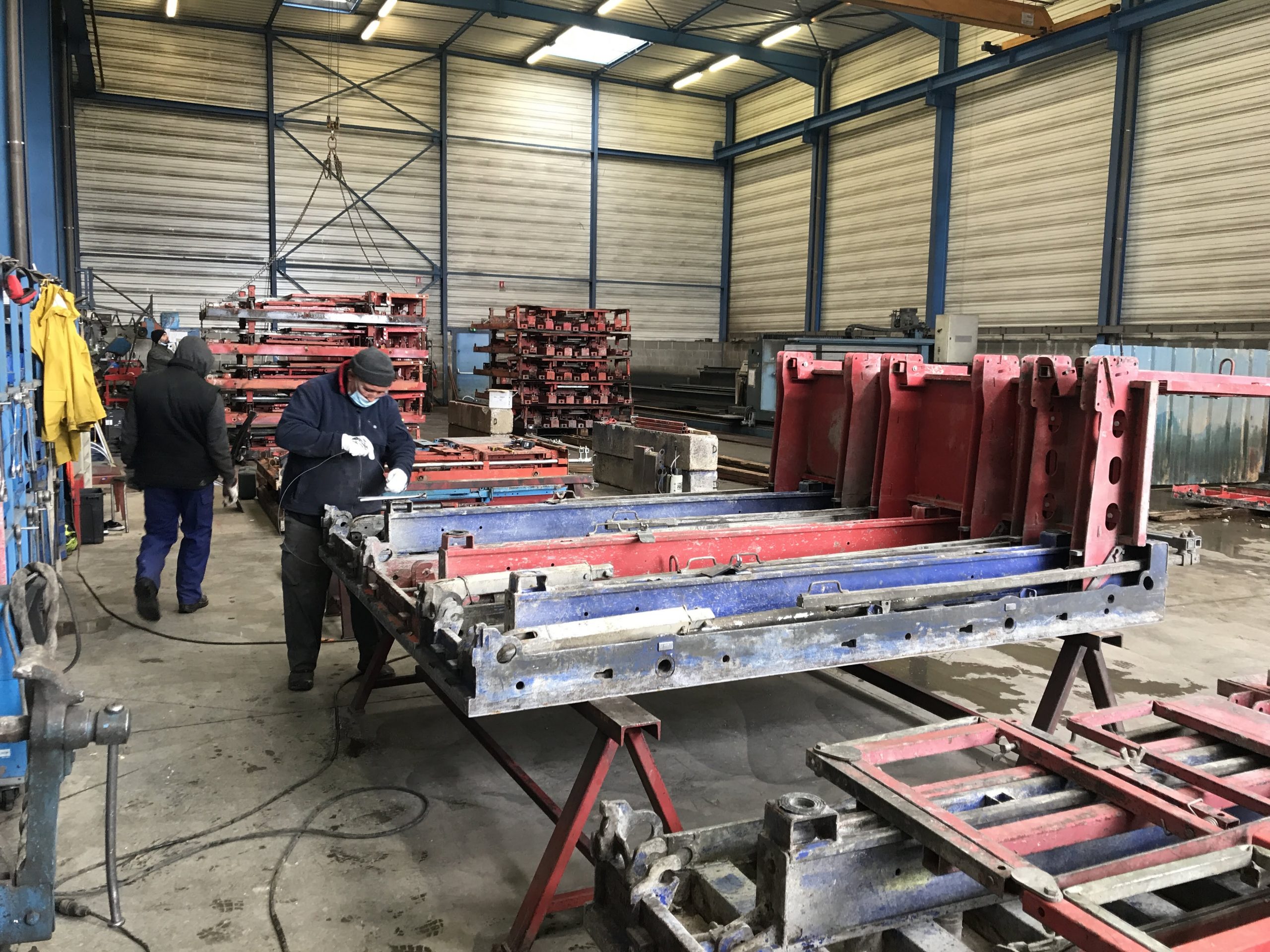

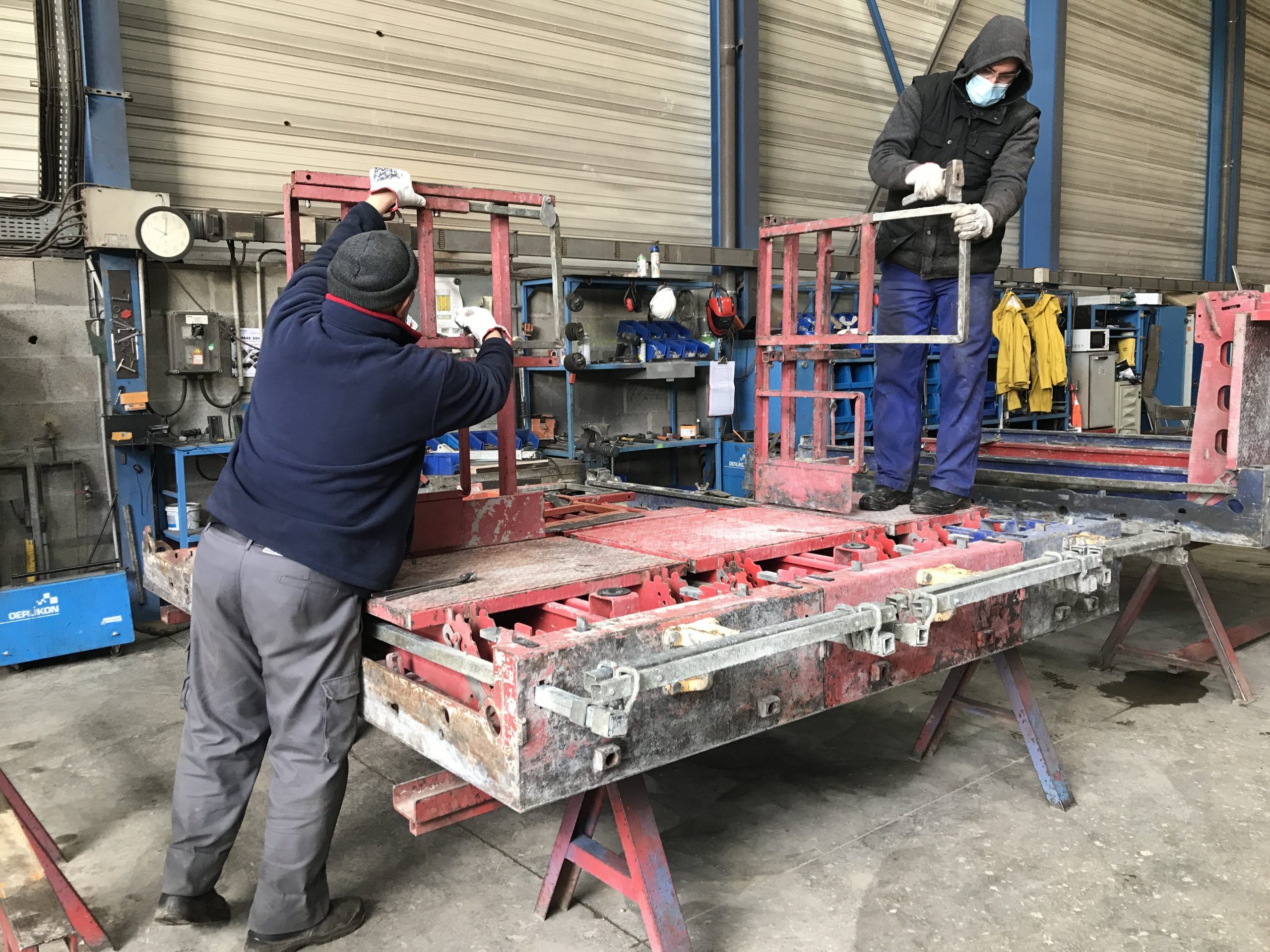

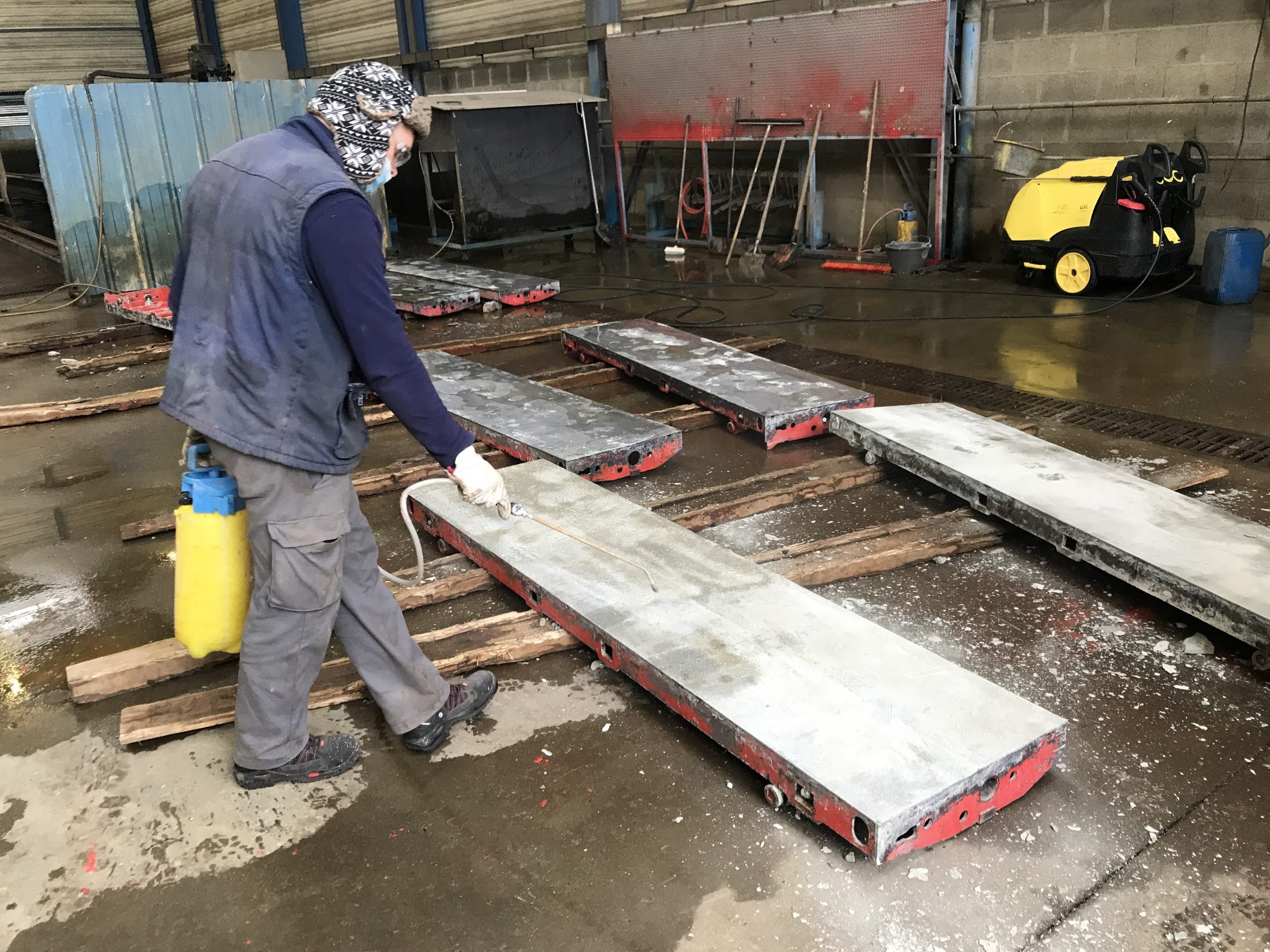

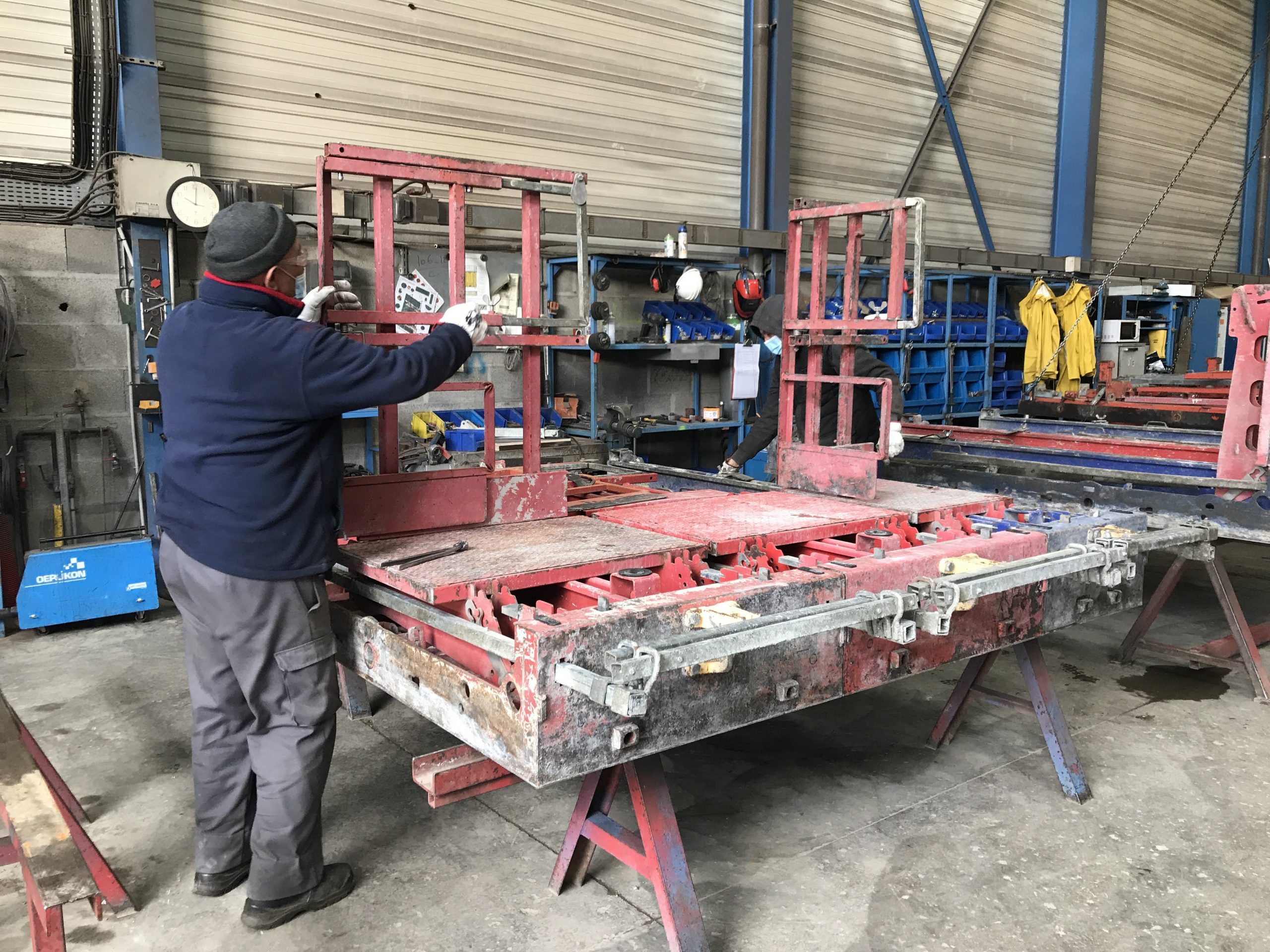

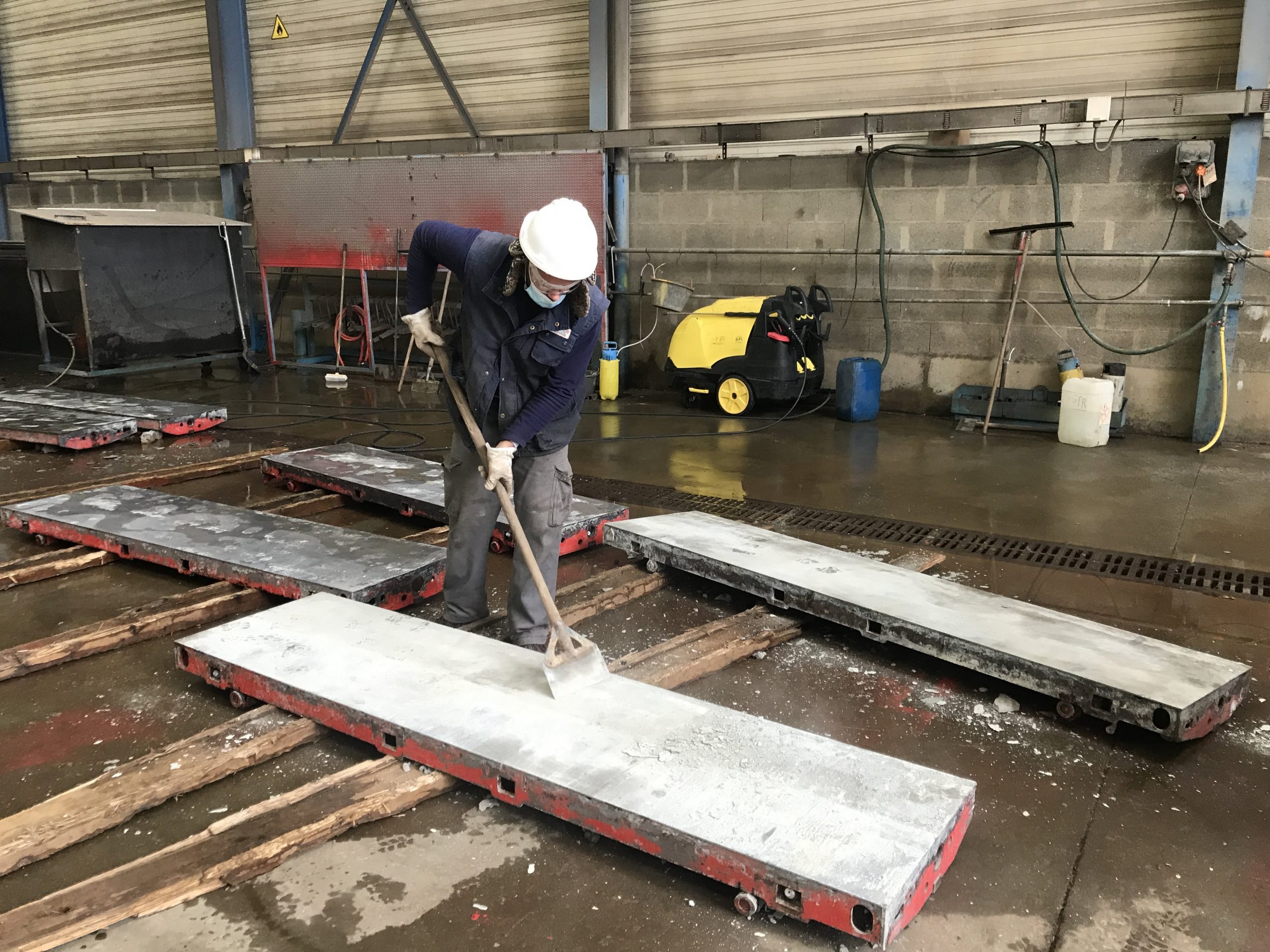

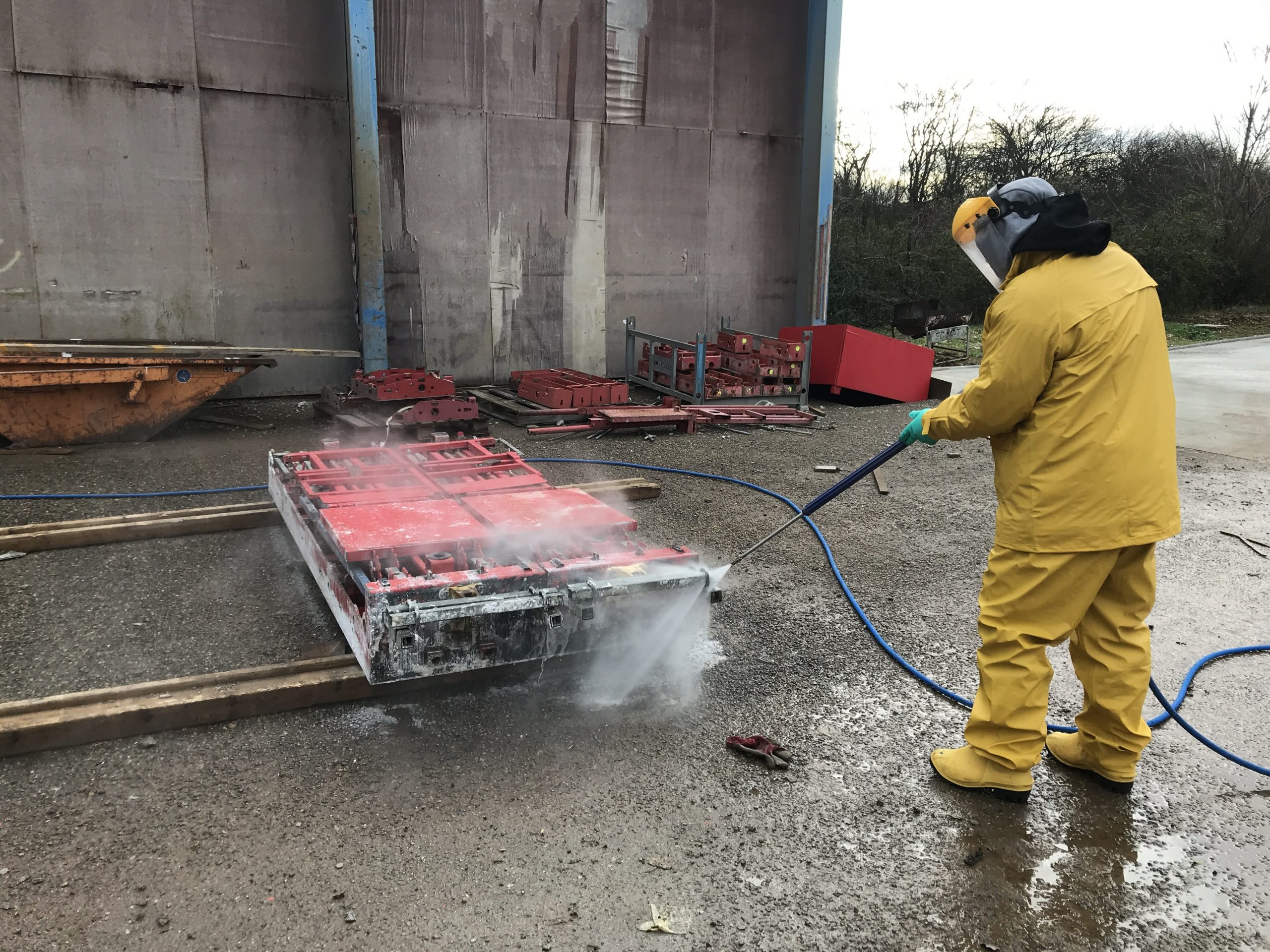

ENTRETIEN DES BANCHES
FAQ
What is the formwork load recovery ?
Between 12 and 15 tons / m²
What quality of facing can we make ?
We can make quality concrete type neat finish raw formwork.
How high are the metal panels ?
Our forms are available in 2.80m and 3m
How much does a banche weigh ?
About 1 ton depending on the type.
